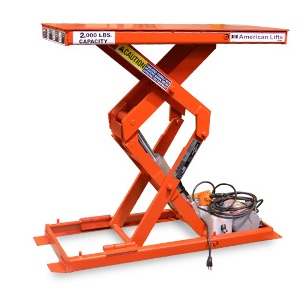

Autoquip Compact Scissors Lift Table

Autoquip Compact Scissors Lifts comes standard with captured rollers, two piece self-aligning cylinder, and high impact spiral wound bearings, giving our customers the most reliable, robust, and absolute longest lasting scissors lift available. Low collapsed heights and small platform sizes also make this family of double-pantograph scissor tables perfect for increasing work station productivity with a minimum consumption of floor space. Travel ranges from 25 to 84 inches and capacities range from 500 to 12,000 pounds. Common work station applications for this family of scissors tables include pallet build-up and break-down, parts assembly and disassembly, and work positioning - all with improved ergonomics and greater factory throughput.  Since Autoquip's acquisition of the American Lift company, the Compact scissors lift series has been manufactured at our factory. All scissors rollers are captured within structural steel channels to provide excellent load stability. High impact, spiral wound bearings at every pivot point provide maintenance-free, rugged resistance to abrasion, impact, and uneven loads. Structural cross-members at every pinned joint in the scissors assembly minimizes leg deflection due to twisting or spreading under high/uneven loading. All hydraulic cylinders contain two-piece, self-aligning piston rods that transmit minimal side forces to the cylinder hinges/pins, significantly reducing wear.

Autoquip Compact Scissors Lift Table

Click on Model Number for More Information and Available Discounts

Model Number Platform Size Travel Capacity Price Buy Now
12" wide x 25" long
5" to 30"
500 pounds
$3,757.05
16.38" wide x 34.38" long
6.25" to 36.25
1,000 pounds
$4,494.60
17.5" wide x 41.5" long
6" to 42"
2,000 pounds
$4,692.60
19" wide x 48" long
7" to 43"
4,000 pounds
$5,539.05
23" wide x 47" long
7" to 43"
4,000 pounds
$5,692.50
23" wide x 47" long
8" to 44"
6,000 pounds
$5,633.10
34" wide x 54" long
10" to 46"
12,000 pounds
$16,726.05
17.5" wide x 49.5" long
6" to 54"
1,500 pounds
$4,999.50
23" wide x 59" long
7" to 55"
3,000 pounds
$7,192.35
23" wide x 59" long
8" to 56"
4,000 pounds
$7,915.05
34" wide x 59" long
12" to 60"
12,000 pounds
$18,216.00
23" wide x 69.5" long
7" to 67"
2,000 pounds
$4,979.70
23" wide x 69.5" long
8" to 68"
3,000 pounds
$8,662.50
31" wide x 70" long
10" to 70"
6,000 pounds
$13,018.50
23" wide x 75" long
10" to 82"
2,000 pounds
$9,791.10
31" wide x 77" long
10" to 82"
4,000 pounds
$12,474.00
31" wide x 84.5" long
10" to 94"
2,000 pounds
$13,068.00
31" wide x 84.5" long
10" to 94"
4,000 pounds
$14,840.10
