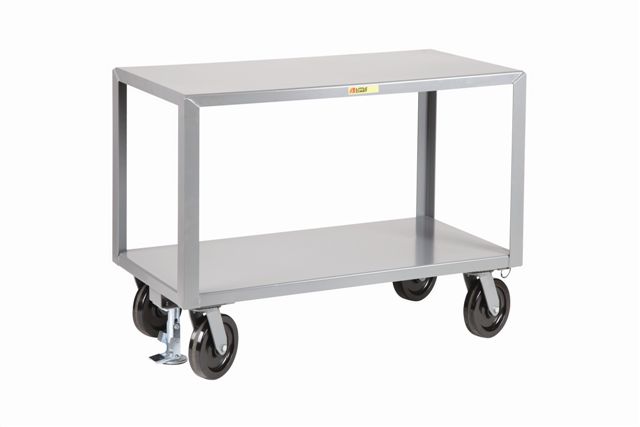

Little Giant 2-Shelf Heavy-Duty Transport Table

Little Giant 2-Shelf Heavy Duty Transport Table

Little Giant 2-Shelf Heavy-Duty Transport Table | Industrial Rolling Cart

The Little Giant 2-Shelf Heavy-Duty Transport Table is built for very heavy material handling, with 12-gauge formed shelves that are reinforced and welded to 2-inch-by-2-inch corner angles for enhanced durability. Rated at 5,000 lbs, it reduces the need for forklifts on short internal moves and cuts down on trips for bulk materials, tooling, and fixtures.

Heavy-duty swivel casters with a large top plate and swivel race provide smooth, effortless mobility, with all four casters swiveling for precise positioning near machines and in tight aisles. Four-position swivel locks on one end let you convert the casters to rigid for straight-line control over longer runs, and a floor lock on the opposite end secures the table in place during loading, unloading, or light work. A durable powder coating adds an extra layer of protection and extends service life.

This is the heavy-duty counterpart to Little Giant's standard IP-Series transport table, stepping up from 1,000 lbs to 5,000 lbs and adding convertible caster locks and a floor lock for added control.

Six sizes are available, all rated at 5,000 lb capacity.


Models and Specifications:

♦ IPG2436-8PHFLPL, 24" wide x 36" long x 36" high. Capacity 5,000 lbs. 12-gauge formed shelves welded to 2"x2" corner angles. Four swivel casters with swivel-to-rigid locks and a floor lock.

♦ IPG2448-8PHFLPL, 24" wide x 48" long x 36" high. Capacity 5,000 lbs. Same construction and features as IPG2436-8PHFLPL, but at a greater length.

♦ IPG3048-8PHFLPL, 30" wide x 48" long x 36" high. Capacity 5,000 lbs. Same construction and features at greater width.

♦ IPG3060-8PHFLPL, 30" wide x 60" long x 36" high. Capacity 5,000 lbs. Same construction and features at greater length.

♦ IPG3072-8PHFLPL, 30" wide x 72" long x 36" high. Capacity 5,000 lbs. Same construction and features at greater length.

♦ IPG3672-8PHFLPL, 36" wide x 72" long x 36" high. Capacity 5,000 lbs. The largest model in this lineup.


Selecting the Right Model:

♦ Size, from 24"x36" up to 36"x72", select based on the footprint of materials being transported and the available floor and aisle space.

♦ Swivel-to-rigid caster locks, converting the front casters to rigid mode, improve straight-line tracking and control when moving heavy loads across long runs, particularly useful in narrow aisles or when navigating a fixed path repeatedly.

♦ Floor lock secures the table in place during loading, unloading, or light work, preventing unwanted movement without requiring a separate wheel chock or brake.

♦ IPG-Series vs. standard IP-Series: choose the IPG-Series when the application requires 5,000 lb capacity and the added control of convertible caster locks plus a floor lock. The standard IP-Series suits lighter loads around 1,000 lbs, where those extra features aren't needed.


Where Commonly Used:

♦ Heavy Component and Tooling Transport, facilities moving dies, motors, pumps, and large hardware between storage and production use the IPG-Series for reliable 5,000 lb capacity transport.

♦ Fixture Staging During Changeovers: maintenance and production teams use the floor lock to keep the table stable and secure during setup.

♦ Warehouse Order Staging Before Palletizing: Warehouses use the IPG-Series to stage heavy orders before palletizing or shipping, benefiting from the high capacity and secure floor lock during load building.

♦ Mobile Assembly and Inspection Base: facilities requiring a mobile base for parts during assembly or inspection tasks use the swivel-to-rigid locks and floor lock for precise positioning and a stable working platform.


CustomMHS is an authorized Little Giant distributor. All purchases include the manufacturer's factory warranty.

Prices are shown by manufacturer model number.
Compare the exact same item across competitors - no extra searching.

Model Number W x L x H Capacity Price View Model
24" x 36" x 36"
5,000 pounds
$904.42
24" x 48" x 36"
5,000 pounds
$969.32
30" x 48" x 36"
5,000 pounds
$1035.25
30" x 60" x 36"
5,000 pounds
$1108.38
30" x 72" x 36"
5,000 pounds
$1184.61
36" x 72" x 36"
5,000 pounds
$1326.77

Frequently Asked Questions (FAQs)

What is the Little Giant 2-Shelf Heavy-Duty Transport Table, and what kind of loads is it built for?
The Little Giant 2-Shelf Heavy-Duty Transport Table is a steel utility cart designed for very heavy material handling. It uses 12-gauge formed shelves reinforced and welded to 2-inch by 2-inch corner angles. This construction supports a 5,000-pound load capacity for dense parts and equipment. Two shelves provide staging space without expanding the cart footprint. A powder-coated finish helps protect the steel in tough shop conditions.
How does this heavy-duty transport table help your facility handle large moves safely?
It reduces the need for forklifts for short internal moves when loads can be safely moved by hand. The high capacity enables fewer trips to move bulk materials, tooling, and fixtures. All four casters swivel, which helps you position the cart precisely near machines. Swivel locks let you convert casters to rigid for straight tracking and better control. A floor lock helps keep the cart from creeping during loading, unloading, or light work.
What key features drive durability and long service life on the shop floor?
The 12-gauge shelves resist deflection under heavy point loads and repeated impacts. Welded reinforcement at the corner angles improves rigidity and reduces twisting under stress. A durable powder coat helps resist scratches, corrosion, and routine chemical wipe-downs. Two shelves support organized transport, with heavier items kept on the lower level for stability. Reinforced construction also supports frequent use in high-traffic areas.
How do the casters, swivel locks, and floor lock improve control during transport?
Heavy-duty swivel casters use a large top plate and swivel race for smoother rolling under load. All four casters swivel, which makes tight turns easier in aisles and near equipment. Four-position swivel locks at one end let you switch the swivel casters to a rigid mode. That improves straight-line control when moving heavy loads across long runs. A floor lock on the opposite end secures the table in place when you need a stable platform.
What are typical uses for the Little Giant 2-Shelf Heavy-Duty Transport Table in industrial settings?
Facilities use it for moving dies, motors, pumps, and large hardware bins between storage and production. It also supports fixture staging during changeovers and tooling moves for maintenance teams. Warehouses use it to stage heavy orders before palletizing or shipping. The cart can serve as a mobile base for parts during assembly or inspection tasks. It is suitable for areas where precise positioning and load control are more important than high-speed movement.
Is the manufacturer’s warranty included with my purchase?
Yes. All products sold on CustomMHS.com include the original manufacturer’s warranty unless otherwise noted. Custom MHS is an authorized dealer for the brands we carry, which means your purchase is covered by the manufacturer's full factory warranty.
Do you offer bulk pricing or discounts on large orders?
Yes. Many products include automatic quantity price breaks. If you’re outfitting a facility or placing a larger order, email us for project pricing. We can often provide improved volume pricing and help coordinate logistics for staged deliveries or multi-location shipments. Contact: [email protected]
Why purchase from CustomMHS.com?
CustomMHS.com isn’t a mass marketplace. We specialize in storage and material handling for manufacturing and distribution operations, and we help you choose the right configuration upfront so you avoid costly ordering mistakes and delays. You get responsive support for larger projects, scalable quantity pricing, and dependable fulfillment. The result is smoother installs, fewer re-orders, and a simpler buying process that saves time and money.
