Vestil Adjustable Container Dolly

Vestil Adjustable Container Dolly, Heavy-Duty Adjustable Tote Dolly

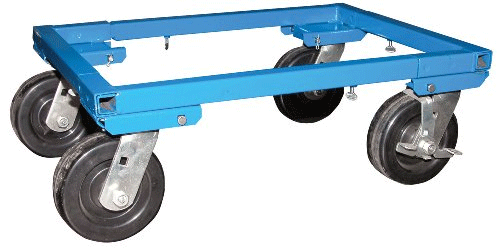

The Vestil Adjustable Container Dolly offers flexible, heavy-duty mobility for a wide range of tote sizes. Its adjustable frame easily expands or contracts by loosening the screws and sliding each side in or out, providing a secure fit for different containers without needing a separate dolly for every size.

Built from welded steel with a durable powder-coated blue finish, this dolly is designed for long-lasting strength and performance. It comes equipped with four swivel casters, including one with a brake, for smooth maneuverability and reliable control. The overall frame is 3 inches larger than the usable size, ensuring stable support for the load.

Two configurations are available, differing in capacity.

Models and Specifications:

♦ ATD-1622-4, min usable 16"x22", max usable 24"x34". Capacity 2,000 lbs. Welded steel, powder-coated blue finish. Four swivel casters, one with a brake.

♦ ATD-1622-6, min usable 16"x22", max usable 24"x34". Capacity 3,000 lbs. Same construction and features as the ATD-1622-4, with higher capacity.

Selecting the Right Model:

♦ Capacity: 2,000 or 3,000 lbs; select based on the maximum expected load weight for your application. Both models share the identical adjustable size range.

♦ Adjustable frame expands or contracts to fit totes and containers from 16"x22" to 24"x34", allowing one dolly to cover multiple container sizes without needing separate equipment for each.

♦ Braked caster, one of the four swivel casters, includes a brake, allowing the dolly to be secured during loading and unloading.

Where Commonly Used:

♦ Warehouse Tote and Container Handling: warehouses use this dolly to move totes and containers of varying sizes without needing a separate dolly for each container dimension.

♦ Manufacturing Work-in-Process Movement: Manufacturing facilities use this dolly to transport bins and totes containing components between work areas.

♦ Retail and Distribution Backroom Handling: Retail and distribution centers use this dolly for moving mixed-size totes and containers during restocking and order processing.

♦ Facilities Standardizing on Adjustable Equipment, facilities looking to reduce equipment variety use the adjustable frame to cover multiple container sizes with a single dolly type.

CustomMHS is an authorized Vestil distributor. All purchases include the manufacturer's factory warranty.
