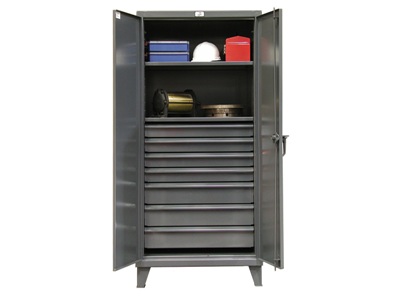

Strong Hold Heavy Duty Storage Drawer Cabinet

Strong Hold Heavy Duty Drawer Storage Cabinets

Strong Hold heavy-duty drawer storage cabinets combine full-extension drawers and heavy-capacity shelves in a single 36"-wide all-welded steel unit. The drawers are rated at 400 pounds each and extend fully for unobstructed access to the entire drawer interior. The shelves carry up to 1,900 pounds. Six configurations let buyers choose the balance between drawers and shelves that matches their storage mix: from 8 drawers and 1 shelf for high-density small-item storage to 3 drawers and 4 shelves, with bulk shelf storage as the primary need and drawer storage as a complement.

Construction is 12-gauge all-welded steel throughout, with 8-gauge hinges and a cast aluminum bronze alloy 3-point locking handle, consistent with the Strong Hold Extreme Duty hardware tier. Ships fully assembled at 78" high and 24" deep. All six models are 36" wide. For wider drawer cabinet formats, see the Strong Hold 6-drawer and 7-drawer series.

Models and Specifications:

♦ 36-241-8DB, 36" wide x 24" deep x 78" high. 8 full-extension drawers at 400 pounds each. 1 shelf. Up to 1,900 pounds per shelf. 3-point locking with padlock hasp. 8-gauge hinges. Ships assembled.

♦ 36-242-7DB, 36" wide x 24" deep x 78" high. 7 full-extension drawers, each rated for 400 pounds. 2 shelves. Up to 1,900 pounds per shelf. 3-point locking with padlock hasp. 8-gauge hinges. Ships assembled.

♦ 36-243-3DB, 36" wide x 24" deep x 78" high. 3 full-extension drawers at 400 pounds each. 3 shelves. Up to 1,900 pounds per shelf. 3-point locking with padlock hasp. 8-gauge hinges. Ships assembled.

♦ 36-243-4DB, 36" wide x 24" deep x 78" high. 4 full-extension drawers at 400 pounds each. 3 shelves. Up to 1,900 pounds per shelf. 3-point locking with padlock hasp. 8-gauge hinges. Ships assembled.

♦ 36-243-5DB, 36" wide x 24" deep x 78" high. 5 full-extension drawers, each rated at 400 pounds. 3 shelves. Up to 1,900 pounds per shelf. 3-point locking with padlock hasp. 8-gauge hinges. Ships assembled.

♦ 36-244-3DB, 36" wide x 24" deep x 78" high. 3 full-extension drawers at 400 pounds each. 4 shelves. Up to 1,900 pounds per shelf. 3-point locking with padlock hasp. 8-gauge hinges. Ships assembled.

Selecting the Right Cabinet:

♦ Drawer count vs. shelf count: the six models represent a spectrum from drawer-dominant (8 drawers, 1 shelf) to shelf-dominant (3 drawers, 4 shelves). Choose more drawers when the majority of stored items are small to medium, benefit from categorized drawer organization, and need to be accessed quickly without moving other items. Choose more shelves when a significant portion of the stored inventory consists of large, bulky, or irregular items that don't fit in drawers and need flat shelf space.

♦ 8-drawer and 7-drawer models for high-density small-item storage, the 36-241-8DB and 36-242-7DB are the highest drawer-count configurations in this lineup. The 8-drawer model has only 1 shelf -- almost the entire interior is drawers. Choose these when organized drawer storage for a large set of small tools, hardware, and parts is the primary requirement, with shelf storage secondary or minimal.

♦ 3-drawer models with 3 or 4 shelves for mixed storage, the 36-243-3DB and 36-244-3DB both have 3 drawers but differ in shelf count: 3 shelves vs. 4 shelves. Both are suitable when the majority of stored inventory is on shelves, with drawer storage supplementing the shelves for smaller items. The 36-244-3DB provides one additional shelf position, which matters if the cabinet will be densely loaded.

♦ 400-pound drawer capacity: full-extension drawers handle dense hand tools, impact wrenches, heavy parts kits, and substantial components without sagging or failing to close fully. Full extension means the entire drawer interior is accessible, with no blind zone at the back. This is the same drawer spec as the Strong Hold On-Site See-Thru and 4-Drawer Wardrobe series.

♦ 36" wide only; all six models in this series are 36" wide. This is the narrowest full-height Strong Hold drawer cabinet available and suits a single-person workstation, tight bay positions, or installations with a constrained footprint. For a wider drawer cabinet (48", 60", or broader), refer to the Strong Hold 6-drawer series or other wider formats in the Strong Hold drawer lineup.

♦ 8-gauge hinges and cast bronze alloy handle, the premium hardware tier on this lineup is the same specification as the Strong Hold Extreme Duty solid-door cabinet and the V-series ventilated cabinet. It is rated for heavy daily use and provides longer service life under high-cycle conditions than standard-hinge configurations.

Where Commonly Used:

♦ Skilled Trades Workstations, machinists, pipefitters, millwrights, and other trades workers who need a large, organized set of hand tools in drawers alongside heavy spare parts and equipment on shelves, all in a single locked 36"-wide cabinet at their primary work position.

♦ Maintenance Technician Home Bases, technicians responsible for multiple machines or systems who keep their full tool kit organized by category in the drawers and stock commonly replaced parts and maintenance supplies on the shelves, with one cabinet covering the complete daily kit.

♦ Tool Crib Satellite Stations, facilities that station a fully stocked drawer and shelf cabinet at each department or production zone as a satellite crib, reducing the need for technicians to travel to a central tool room for common tools and parts during the shift.

♦ Quality Control Instrument Storage: QC technicians store a large set of precision measurement instruments in organized drawers, each instrument type in its assigned drawer, with calibration references and documentation on the shelves, in a secure cabinet that controls access to precision tools.

♦ High-Value Tool Accountability Positions, environments where tool accountability is enforced at shift change, benefit from the 3-point locking and padlock hasp, which allows the cabinet to be secured under two independent locking mechanisms and the complete tool set confirmed against an inventory list at handoff.

CustomMHS is an authorized Strong Hold distributor. All purchases include the manufacturer's factory warranty.
