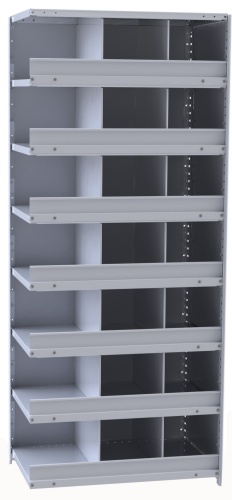

Hallowell 5536 Hi-Tech Storage Bin Shelving – 21 Openings

Hallowell 5536 Hi-Tech Bin Shelving | 21 Openings with 3" Front Bins

The Hallowell 5536 bin shelving unit provides 21 openings per unit, each 12" wide x 12" high, with 3" high front bins included. The opening count and size are identical to the 5526, but the 5536 adds front bins at the leading edge of each shelf position. The 3" front bins contain items at the front of the opening, preventing parts from sliding forward during picking and providing a cleaner visual presentation of each position. This is the only model in the Hi-Tech Bin Shelving System series that includes front bins as a standard feature.

The 5536 is the correct selection over the 5526 when front bin containment is needed at each position for example, when items are prone to sliding, when visual order at the shelf face is important for audits or inspections, or when the 3" front lip helps distinguish each position in a high-velocity picking environment. All units are 36" wide x 87" high. Three depth options: 12", 18", and 24".

Models and Specifications:

♦ 5536-12, 36" W, 12" D, 87" H. Starter Unit. 21 openings at 12" W x 12" H. 3" front bins included.

♦ A5536-12, 36" W, 12" D, 87" H. Add-on Unit. 21 openings at 12" W x 12" H. 3" front bins included.

♦ 5536-18, 36" W, 18" D, 87" H. Starter Unit. 21 openings at 12" W x 12" H. 3" front bins included.

♦ A5536-18, 36" W, 18" D, 87" H. Add-on Unit. 21 openings at 12" W x 12" H. 3" front bins included.

♦ 5536-24, 36" W, 24" D, 87" H. Starter Unit. 21 openings at 12" W x 12" H. 3" front bins included.

♦ A5536-24, 36" W, 24" D, 87" H. Add-on Unit. 21 openings at 12" W x 12" H. 3" front bins included.

Selecting the Right Depth:

♦ 12" depth, minimum footprint. Suited for items that do not require more than 12" of front-to-back clearance behind the 3" front bin.

♦ 18" depth, standard depth. Provides the most useful depth behind the front bin for medium-sized parts in 12" wide positions.

♦ 24" depth, maximum depth. For higher per-opening volume or items that require more front-to-back space behind the front bin.

♦ 5536 vs. 5526, both models have 21 openings at 12" W x 12" H. The 5536 includes 3" front bins; the 5526 does not. Choose 5536 when front bin containment is required at each position. Choose 5526 when front bins are not needed, and the lower price of the comparable 5526 configuration is preferred.

♦ Starter vs. add-on units: Order one starter per row. Add-on units share a side panel and cannot stand alone.

Where Commonly Used:

♦ Parts Rooms Requiring Front Containment at Each Position, parts rooms where items are prone to sliding forward during picking or where a clean, contained shelf face is required for organizational or audit purposes, use the 5536 to provide the same 21-position 12" wide layout as the 5526 with the addition of 3" front bins at each position.

♦ High-Velocity Pick Environments with Loose Parts, picking operations where loose hardware, small components, or unsecured parts are stored in 12" wide positions, use the 3" front bin to keep contents from falling forward during high-frequency picking without requiring separate bin inserts.

♦ Inspection and Audit-Ready Storage Areas, storage areas subject to regular inventory audits or 5S inspections use the 5536's front bins to maintain a consistently neat, defined shelf face at each position, making it visually clear which positions are stocked and which are empty.

♦ Maintenance and Parts Counter Storage with Professional Presentation Standards, maintenance cribs and parts counters where shelf presentation is a priority alongside functionality, use the 5536 for the improved visual order that the 3" front bins provide at each of the 21 positions.

CustomMHS is an authorized Hallowell distributor. All purchases include the manufacturer's factory warranty.
