Ballymore Fixed Crossover Bridge Section - Step 2

Ballymore Fixed Crossover Bridge Section, Step 2

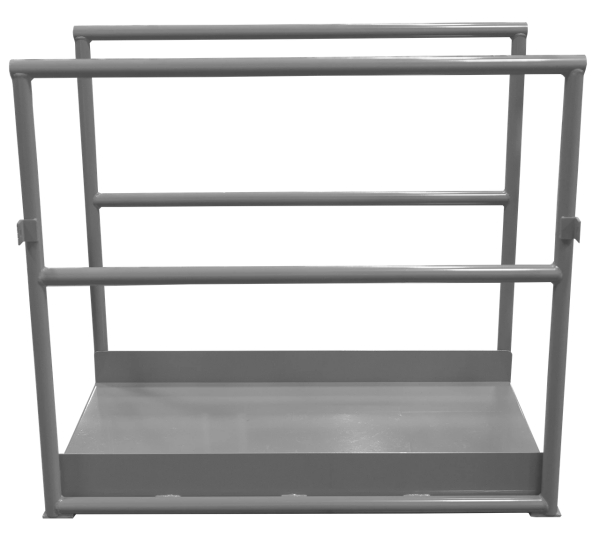

The Ballymore Bridge Sections for Industrial Crossovers offer customizable solutions for varying workplace needs. These sections can be combined in any length with corresponding width stair sections to suit specific applications. Each bridge features a robust structural frame and rails constructed from heavy 1-1/4" schedule 40 pipe, ensuring durability and safety. They are equipped with full rails, midrails, and toe boards for enhanced worker protection.

This configuration is part of the Ballymore Fixed Crossover Bridge Section, Step 2, designed to facilitate safe and efficient crossing over pipes, conveyors, or other workplace obstacles. Match your bridge width and tread type to the stair sections selected in Step 1 to complete a full crossover system.

Selection Guide:

♦ 20" bridge length, 18" horizontal clearance: available in 27" Expanded Metal (CB227), 31-1/2" Serrated Grating (CB231), or 38-1/2" Serrated Grating (CB238)
♦ 30" bridge length, 28" horizontal clearance: available in 27" Expanded Metal (CB327), 31-1/2" Serrated Grating (CB331), or 38-1/2" Serrated Grating (CB338)
♦ 40" bridge length, 38" horizontal clearance: available in 27" Expanded Metal (CB427), 31-1/2" Serrated Grating (CB431), or 38-1/2" Serrated Grating (CB438)
♦ 50" bridge length, 48" horizontal clearance: available in 27" Expanded Metal (CB527), 31-1/2" Serrated Grating (CB531), or 38-1/2" Serrated Grating (CB538)
♦ 60" bridge length, 58" horizontal clearance: available in 27" Expanded Metal (CB627), 31-1/2" Serrated Grating (CB631), or 38-1/2" Serrated Grating (CB638)

Selecting the Right Model:

♦ Bridge length: choose from 20" up to 60" based on the obstacle width you need to span.
♦ Width and tread type: match the bridge width and tread to the stair sections you selected. 27" comes with Expanded Metal, while 31-1/2" and 38-1/2" come with Serrated Grating.
♦ System matching: always order bridge and stair sections with matching width and tread type to complete a full crossover system.

Where Commonly Used:

♦ Conveyor and Piping Crossings: bridge sections span obstacles between matched stair sections.
♦ Custom-Length Crossover Systems: combine any bridge length with appropriate stair sections.
♦ Production Areas with Frequent Foot Traffic: full rails and toe boards protect workers as they cross the bridge.
♦ Wet or Washdown-Prone Facilities: serrated grating treads support the most demanding traction needs.

CustomMHS carries the full line of Ballymore crossover bridge sections, backed by the manufacturer's warranty.
