Logitrans ELF 1201-Series Electric Fork-Over Stacker

Interthor ELF-Series Electric Logiflex Flexible Stacker

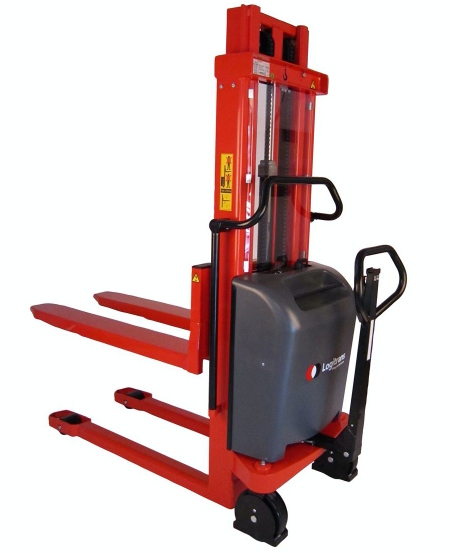

Logitrans ELF 1201-Series Electric Fork-Over Stacker | 3,300 lb Capacity, 36" to 63" Lift

The Logitrans ELF 1201 Series is a battery-powered electric lift and manual push stacker for high-capacity pallet handling at moderate lift heights. With a 3,300 lb rated capacity, the ELF 1201 handles heavier loads than the standard ELF 1001 Series (2,200 lb), while its lift height range of 36" to 63" is suited for staging, conveyor feeding, and lower-position rack loading rather than the very high lift positions covered by the ELF 1001. The two series serve complementary needs: the ELF 1201 for heavy loads at moderate heights, and the ELF 1001 for lighter loads at greater heights (75" to 130").

The fork-over design accommodates standard four-way pallets, open-bottom pallets, and skids. It does not work with closed-bottom pallets. Forks are 22" wide x 45" long. Ergonomic handle and compact footprint allow maneuvering in tighter warehouse and production aisles. Four lift-height options are available, all with the same 3,300-lb capacity.


Models and Specifications:

♦ ELF 1201-36, 22" W, 45" L forks. Maximum lift height 36". Capacity 3,300 lbs. Electric lift, manual push. Fork-over design. The lowest-height model, suited for staging and conveyor-height positioning.

♦ ELF 1201-47, 22" W, 45" L forks. Maximum lift height 47". Capacity 3,300 lbs. Electric lift, manual push. Fork-over design.

♦ ELF 1201-55, 22" W, 45" L forks. Maximum lift height 55". Capacity 3,300 lbs. Electric lift, manual push. Fork-over design.

♦ ELF 1201-63, 22" W, 45" L forks. Maximum lift height 63". Capacity 3,300 lbs. Electric lift, manual push. Fork-over design. The tallest model in the ELF 1201 lineup.


Selecting the Right Model:

♦ Lift height: 36", 47", 55", or 63"; select based on the highest rack position, conveyor height, or staging height required. All four models are rated at 3,300 lb; height is the only variable. If in doubt, choose the taller model; it can always be used at lower heights.

♦ ELF 1201 vs. ELF 1001: The ELF 1201 handles 3,300 lbs at heights up to 63". The ELF 1001 handles 2,200 lbs at heights up to 130". If loads are heavy (above 2,200 lb) and heights are moderate (up to 63"), the ELF 1201 is the correct choice. If loads are lighter and very high positions (75" to 130") are needed, the ELF 1001 is appropriate.

♦ Fork-over compatibility: confirm that the pallets in the operation accept fork-over entry (standard four-way or open-bottom). For closed-bottom pallets, the Logitrans LFS-Mini (straddle design, manual) is the appropriate alternative.


Where Commonly Used:

♦ Heavy Pallet Staging and Conveyor Feeding: stage or lift heavy pallets (up to 3,300 lb) to conveyor infeed positions at heights of 36" to 63"; use the ELF 1201 for electric-powered lift at capacities that exceed the ELF 1001's rating.

♦ Production and Manufacturing Heavy Material Supply, production facilities moving heavy raw material pallets between staging, production, and outbound positions use the ELF 1201 for frequent electric lift cycling at heavy load weights without manual pump effort.

♦ Receiving and Inbound Heavy Freight Positioning: receiving departments handling inbound pallets at or near 3,300 lbs use the ELF 1201 for powered positioning to staging or inspection height, without powered forklift involvement, for loads at the heavier end of the manual stacker category.

♦ Distribution Operations with High-Capacity Stacking, distribution operations stacking or positioning heavy outbound pallets at rack heights of 36" to 63" use the ELF 1201 for a reliable electric lift at the highest capacity available in the Logitrans electric stacker lineup at CustomMHS.


CustomMHS is an authorized Logitrans distributor. All purchases include the manufacturer's factory warranty.


Use with these styles of pallets.

interthor stacker

Prices are shown by manufacturer model number.
Compare the exact same item across competitors - no extra searching.

Model Number Fork Size Lifting Height Capacity Price View Model
22" wide x 45" long
36"
3,300 pounds
$5947.64
22" wide x 45" long
47"
3,300 pounds
$6184.82
22" wide x 45" long
55"
3,300 pounds
$6423.22
22" wide x 45" long
63"
3,300 pounds
$6660.37

Frequently Asked Questions (FAQs)

What is the Interthor Logitrans ELF-Series electric Logiflex stacker used for?
The Interthor Logitrans ELF-Series electric Logiflex stacker is a powered lifting solution that raises, transports, and positions palletized loads with ease. It is designed for operations that require frequent stacking, staging, or material movement at workstations without forklifts. Electric lift and drive functions help operators handle loads smoothly and efficiently. This stacker is a strong fit for facilities focused on ergonomic handling and daily productivity.
How does electric lifting improve ergonomics and safety?
Electric lifting reduces manual effort, helping operators avoid repetitive bending, pushing, and strain. Loads can be raised to an optimal working height with smooth, powered control. This supports better posture, lower fatigue, and safer handling throughout the shift. Over time, ergonomic electric lifting reduces injuries and improves performance.
What makes the ELF-Series valuable for heavier capacity handling?
The higher-capacity design makes this stacker suitable for more demanding pallet-handling tasks in busy industrial environments. Operators can manage larger loads while maintaining stability and controlled positioning. This reduces the need for oversized equipment while still supporting strong lifting performance. It provides a practical balance of power, versatility, and ergonomic support.
Where does the ELF-Series perform best in daily operations?
This electric stacker performs well in warehouses, production facilities, distribution centers, and staging areas that require frequent pallet movement. It is especially useful in tighter work zones where forklifts may not be ideal. The combination of maneuverability and powered lift support makes it effective for multi-station workflows. Any operation needing dependable electric stacking can benefit from this unit.
How does the Logiflex stacker support workflow efficiency?
By combining lift and transport into a single powered unit, the stacker reduces wasted motion and accelerates repetitive handling tasks. Operators can position materials quickly and accurately without excessive physical effort. Smooth lifting also improves load stability and reduces handling errors. These advantages lead to more consistent throughput and better daily material flow.
Why purchase the Interthor Logitrans ELF-Series stacker from CustomMHS?
CustomMHS helps customers select the right electric stacker based on load requirements, facility layout, and workflow goals. Our team provides clear guidance and access to trusted ergonomic material handling solutions built for long-term performance. You can count on dependable support and a smooth purchasing experience from start to finish. When high-capacity electric stacking is required, CustomMHS delivers the right solution.
Is the manufacturer’s warranty included with my purchase?
Yes. All products sold on CustomMHS.com include the original manufacturer’s warranty unless otherwise noted. Custom MHS is an authorized dealer for the brands we carry, which means your purchase is covered by the manufacturer's full factory warranty.
Do you ship nationwide?
Yes. We ship throughout the United States and Canada using trusted freight partners experienced in handling industrial equipment. Our team coordinates shipping details to ensure safe and efficient delivery.
