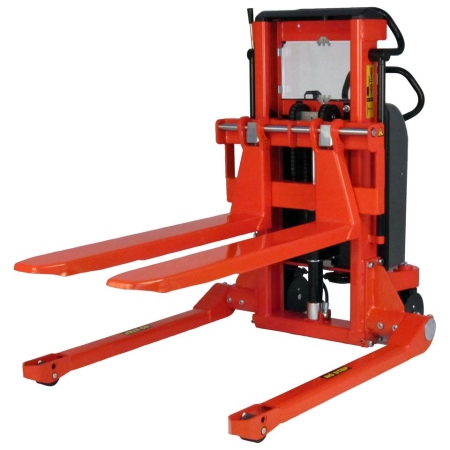

Logitrans ELFS Series Electric Straddle Legs Stacker

The Logitrans ELFS Series is the electric lift-and-manual-push counterpart to the manual LFS-Mini straddle-legs stacker. The straddle legs design is the defining feature: the legs extend alongside the pallet from both sides, allowing the narrow forks (6.5" wide) to slide under the pallet deck without requiring open fork entry points. As a result, the ELFS handles all pallet types: standard four-way pallets, closed-bottom pallets, block pallets, and skids, where a fork-over design like the ELF Series cannot engage closed-bottom pallets.

Electric lift provides push-button operation, reducing operator effort during repeated stacking and positioning cycles. The ergonomically designed handle provides a comfortable grip during manual pushing. Rounded corners minimize contact damage to pallets, goods, and surroundings. The design is adjustable to individual users and was developed in collaboration with health and safety experts.

Seven models cover lifting heights from 35" to 128". The rated capacity is 2,200 lbs across all seven models -- there is no capacity reduction at greater heights, which is a meaningful structural advantage for operations that need both high reach and full load capacity.

Models and Specifications:

♦ ELFS 1001-35, 6.5" W, 42" L forks. Maximum lift height 35". Capacity 2,200 lbs. Electric lift, manual push. Straddle-leg design. All pallet types.

♦ ELFS 1001-64, 6.5" W, 42" L forks. Maximum lift height 64". Capacity 2,200 lbs. Electric lift, manual push. Straddle-leg design. All pallet types.

♦ ELFS 1001-74, 6.5" W, 42" L forks. Maximum lift height 74". Capacity 2,200 lbs. Electric lift, manual push. Straddle-leg design. All pallet types.

♦ ELFS 1001-79, 6.5" W, 42" L forks. Maximum lift height 79". Capacity 2,200 lbs. Electric lift, manual push. Straddle-leg design. All pallet types.

♦ ELFS 1001-95, 6.5" W, 42" L forks. Maximum lift height 95". Capacity 2,200 lbs. Electric lift, manual push. Straddle-leg design. All pallet types.

♦ ELFS 1001-111, 6.5" W, 42" L forks. Maximum lift height 111". Capacity 2,200 lbs. Electric lift, manual push. Straddle-leg design. All pallet types.

♦ ELFS 1001-128, 6.5" W, 42" L forks. Maximum lift height 128". Capacity 2,200 lbs. Electric lift, manual push. Straddle legs design. All pallet types. The tallest model in the ELFS lineup and, at 2,200 lb constant capacity to 128", the highest combined height and capacity electric stacker in the CustomMHS catalog.

Selecting the Right Model:

♦ Maximum lift height, 35" through 128", select the model whose maximum lift height meets or exceeds the highest rack position or stacking height required. The model number suffix indicates the maximum lift height in inches. All seven models maintain a 2,200 lb capacity regardless of lift height. Choose the height that fits the application without capacity concern.

♦ Straddle legs vs. fork-over design (ELF Series): the ELFs use straddle legs, which allow them to be used with all pallet types, including closed-bottom pallets. The ELF Series uses a fork-over design, which does not work with closed-bottom pallets. If closed-bottom pallets are present in the operation or if pallet types vary, the ELFS is the appropriate choice.

♦ Constant capacity at all heights, unlike the ELF 1001 fork-over series, where capacity decreases at the two tallest models (1,760 lb at 112" and 1,320 lb at 130"), the ELFS maintains 2,200 lb at all heights, including 128". If the full 2,200-lb capacity is required at very high rack positions, the ELFS provides it without compromise.

♦ ELFS vs. LFS-Mini (manual straddle), both use the same straddle leg design and same fork dimensions. The ELFS uses an electric lift for high-frequency applications and reaches up to 128". The manual LFS-Mini has a maximum lift height of 62" and uses a hand pump. Choose ELFS for higher reach and to eliminate manual pump effort; choose LFS-Mini for lower-frequency applications where the 62" maximum height is sufficient.

Where Commonly Used:

♦ Mixed Pallet Inventory High-Bay Racking, warehouse operations handling a mix of open-entry and closed-bottom pallets in high-bay racking positions use the ELFS for electric-powered stacking at heights up to 128" across all pallet types, without needing separate equipment for different pallet configurations.

♦ Food Processing and Cold Storage All-Pallet Environments, food processing plants and cold storage operations using closed-bottom food-grade pallets that other stackers cannot handle, use the ELFS for electric lift and stacking into racking at heights requiring a more capable stacker than the manual LFS-Mini can provide.

♦ Distribution Center High-Bay Loading with All Pallet Types: Distribution centers where outbound freight is palletized on various pallet types, including closed-bottom export or display pallets, use the ELFS as the single stacker that covers all pallet types at the facility's highest rack loading heights.

♦ High-Volume Stacking Where Manual Effort Is a Constraint, production and distribution operations cycling pallet stacking repeatedly throughout the shift use the ELFS electric lift to eliminate manual pump effort, maintaining consistent cycle times and operator energy across multi-shift high-volume stacking operations.

CustomMHS is an authorized Logitrans distributor. All purchases include the manufacturer's factory warranty.
