MECO Cantilever Series 3000, 4000, and 5000 Structural Brace Sets for Cantilever Rack Stability

These structural channel brace sets bolt between pairs of Series 3000, 4000, or 5000 uprights to provide lateral stability. One brace set is required for each bay in the row. Unlike the Series 1000 and 2000 brace sets, which are dedicated to their respective series, these brace sets are cross-compatible across all three higher-duty series: Series 3000, 4000, and 5000.

The number of braces per set and the inclusion of X bracing vary by upright height group, following the same pattern as the Series 2000 brace sets. Brace sets are sold as complete sets, not individual pieces. Standard finish is gray.

Prices are shown by manufacturer model number for direct competitor comparison.

Choosing the Right Brace Set:

Three decisions determine the correct model: upright height group, brace length, and inclusion of X bracing.

Step 1: Match the upright height group. The prefix number indicates the braces-per-set count and height group.

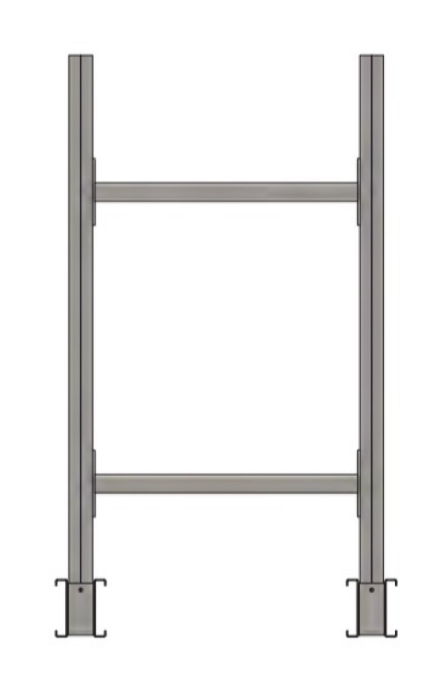

♦ 2B series (two braces per set): For 8' uprights. Verify with MECO whether 6' Series 3000/4000/5000 uprights also use this set -- the table currently lists "8' uprights" only.

♦ 3B series (three braces per set): For 10' to 14' uprights.

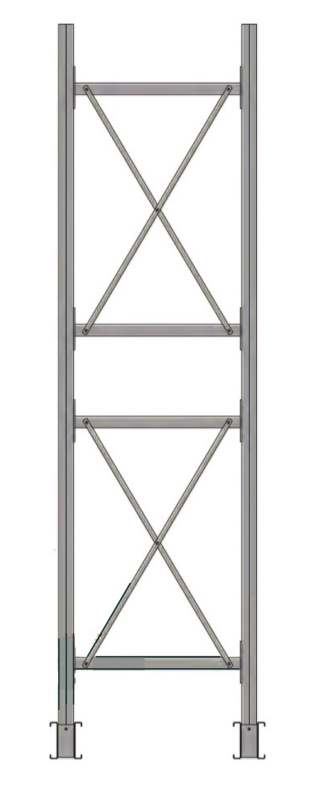

♦ 4B series (four braces per set plus X bracing): For 15' to 20' uprights. The X suffix on all 4B models indicates the set includes X bracing. The two widest lengths (4B96XX and 4B120XX) use a double-X designation indicating additional cross-bracing for the widest spans.

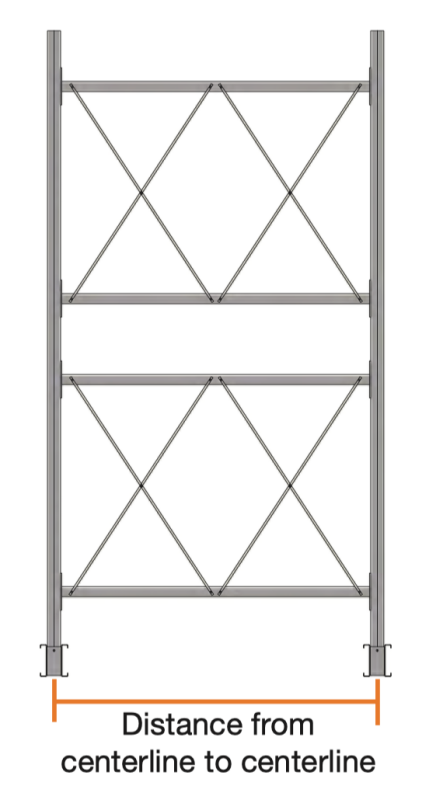

Step 2: Measure centerline to centerline. Brace length is measured from the centerline of one upright to the centerline of the next. Verify with MECO or call 866-333-0728 whether the nominal model number matches the actual brace width exactly or whether the actual width is 1" less than the nominal value (as is the case with Series 1000 and 2000 brace sets).

Available lengths (nominal model number):

♦ B24 models: 24" nominal.

♦ B36 models: 36" nominal.

♦ B42 models: 42" nominal.

♦ B48 models: 48" nominal.

♦ B60 models: 60" nominal.

♦ B72 models: 72" nominal.

♦ B84 models: 84" nominal.

♦ B96 models: 96" nominal.

♦ B120 models: 120" nominal. X bracing is included across all height groups at this length.

Not sure which brace set fits your layout? Call 866-333-0728 or use the quote form.

Prices are shown by manufacturer model number.
Compare the exact same item across competitors - no extra searching.

Model Number Brace Length Compatible with Use Brace with Price View Model
24" wide
8' uprights
Series 3000, 4000, and 5000 Uprights
$50.00
36" wide
8' uprights
Series 3000, 4000, and 5000 Uprights
$59.00
42" wide
8' uprights
Series 3000, 4000, and 5000 Uprights
$62.00
48" wide
8' uprights
Series 3000, 4000, and 5000 Uprights
$67.00
60" wide
8' uprights
Series 3000, 4000, and 5000 Uprights
$78.00
72" wide
8' uprights
Series 3000, 4000, and 5000 Uprights
$86.00
84" wide
8' uprights
Series 3000, 4000, and 5000 Uprights
$95.00
96" wide
8' uprights
Series 3000, 4000, and 5000 Uprights
$107.00
120" wide
8' uprights
Series 3000, 4000, and 5000 Uprights
$172.00
24" wide
10' to 14' uprights
Series 3000, 4000, and 5000 Uprights
$74.00
36" wide
10' to 14' uprights
Series 3000, 4000, and 5000 Uprights
$88.00
42" wide
10' to 14' uprights
Series 3000, 4000, and 5000 Uprights
$94.00
48" wide
10' to 14' uprights
Series 3000, 4000, and 5000 Uprights
$100.00
60" wide
10' to 14' uprights
Series 3000, 4000, and 5000 Uprights
$117.00
72" wide
10' to 14' uprights
Series 3000, 4000, and 5000 Uprights
$129.00
84" wide
10' to 14' uprights
Series 3000, 4000, and 5000 Uprights
$141.00
96" wide
10' to 14' uprights
Series 3000, 4000, and 5000 Uprights
$160.00
120" wide
10' to 14' uprights
Series 3000, 4000, and 5000 Uprights
$256.00
24" wide
15' to 20' uprights
Series 3000, 4000, and 5000 Uprights
$159.00
36" wide
15' to 20' uprights
Series 3000, 4000, and 5000 Uprights
$171.00
42" wide
15' to 20' uprights
Series 3000, 4000, and 5000 Uprights
$182.00
48" wide
15' to 20' uprights
Series 3000, 4000, and 5000 Uprights
$191.00
60" wide
15' to 20' uprights
Series 3000, 4000, and 5000 Uprights
$224.00
72" wide
15' to 20' uprights
Series 3000, 4000, and 5000 Uprights
$265.00
84" wide
15' to 20' uprights
Series 3000, 4000, and 5000 Uprights
$272.00
96" wide
15' to 20' uprights
Series 3000, 4000, and 5000 Uprights
$342.00
120" wide
15' to 20' uprights
Series 3000, 4000, and 5000 Uprights
$485.00
