Lift Tables for Industrial Facilities
CustomMHS.com provides a broad range of ergonomic lift tables, scissor lifts, work positioners, and pallet and bin tippers from leading manufacturers, including Blue Giant, Bishamon, Presto-Lifts, Autoquip, and Lift Products. Each unit is engineered with heavy-duty hydraulic, electric, or pneumatic lifting systems built to withstand daily use in warehouses, manufacturing plants, and distribution centers.
Lift tables and positioners are ergonomic material-handling solutions that raise, lower, and position loads for safer, more efficient work. Designed for warehouses, manufacturing, and distribution environments, these systems deliver smooth, controlled lifting to support consistent workstation setups.
Repetitive bending and awkward reaching contribute to workplace strain and injury. Lift tables bring materials to the proper working height, improving posture and reducing physical effort during packing, assembly, and transfer tasks. By maintaining optimal load height and positioning, lift tables and tippers reduce fatigue, improve task consistency, and increase throughput.
Selecting the Right Type:
♦ Table type: choose Scissor Lift for the general height range, Low Profile for tight clearance under load, or Floor Level for zero-threshold pallet loading.
♦ Capacity, ranging from 250 up to 24,000 lb across these lines, is selected based on the heaviest load the table will regularly handle.
♦ Application: choose a Self-Leveling Positioner for automatic surface-height feeding or a Pallet Turntable for rotating loads at floor level.
Where Commonly Used:
♦ Packing and Assembly Stations: lift tables raise materials to the proper working height, reducing bending and reaching.
♦ Warehouses and Distribution Centers: floor-level tables support easy pallet loading with pallet jacks.
♦ Manufacturing Plants: self-leveling positioners maintain consistent feed height during production.
♦ Sanitation-Sensitive Facilities: stainless steel table options support washdown and food-grade environments.
CustomMHS carries the full line of Blue Giant, Bishamon, Presto-Lifts, Autoquip, and Lift Products lifting equipment, backed by each manufacturer's warranty.
| Scissors Lift Tables |
|

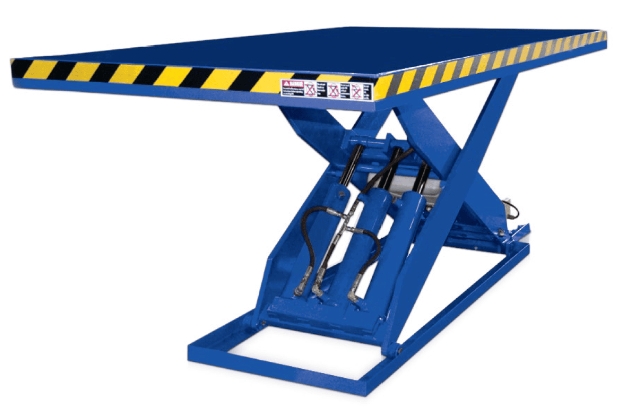

Blue Giant Standard Duty Scissors Lift Tables, 7.5" to 70" Travel, 2,000-6,000 lbs cap.
Standard-duty scissor lift with up to 70 inches of travel and 6,000-pound capacity for general warehouse use.
|
Bishamon Alpha Scissors Lift Tables, 8.5" to 60" Travel, 2,200 to 6,600 lbs cap.
The Alpha series scissor lift offers up to 60 inches of travel and a 6,600-pound capacity for demanding applications.
|
Lift Products Guardian Series Lift Table, 7.87" to 48" Travel, 1,100 lbs cap.
Compact Guardian series lift table is suited for lighter-duty positioning tasks.
|
Presto-Lifts XL-Series Scissors Lift Tables, 7.25" to 57" Travel, 2,000-8,000 lbs cap.
XL-Series lift table handles up to 8,000 pounds and offers nearly 5 feet of travel.
|
Autoquip Series 35 Scissors Lift Tables, 6.5" to 68" Travel, 2,500-8,000 lbs cap.
The Series 35 lift table delivers up to an 8,000-pound capacity for heavy daily use.
|
Lift Products Max-M22/33 Scissor Lift Table, 7.25" to 43.25" Travel, 2,200-3,300 lbs cap.
The Max-M22/33 lift table offers mid-range capacity within a compact travel range.
|
Autoquip TorkLift Scissors Lift Table, 6" to 84.75" Travel, 2,200-20,000 lbs cap.
TorkLift table reaches up to a 20,000-pound capacity for the heaviest loads.
|
Lift Products Max-Lift Lift Table, 7" to 68" Travel, 2,000 to 6,000 lbs cap.
Max-Lift table provides up to 68 inches of travel with a 6,000-pound capacity.
|
Lift Products G-Series Lift Tables, 8" to 40" Travel, 2,000 to 3,000 lbs cap.
G-Series lift table offers a compact travel range for general-purpose positioning.
|
Presto-Lifts Wide Base Scissors Lift Tables, 7.75" to 70" Travel, 2,000-8,000 lbs cap.
Wide base design adds stability for loads up to 8,000 pounds.
|
Autoquip Series 35 Extra Narrow Scissors Lift Tables, 6.5" to 90" Travel, 2,500-4,000 lbs cap.
Extra-narrow footprint fits tight spaces while reaching up to 90 inches of travel.
|
Presto-Lift Double Scissors Lift Tables, 6" to 86" Travel, 500-4,000 lbs cap.
Double-scissor design reaches up to 86 inches of travel for taller lifting needs.
|
Autoquip Series 35 Extra Wide Scissors Lift Tables, 6.5" to 72" Travel, 2,500-15,000 lbs cap.
Extra-wide platform supports up to 15,000 pounds for oversized loads.
|
Autoquip Series 35 Double Long Scissors Lift Tables, 6.5" to 72" Travel, 4,000-24,000 lbs cap.
Double long platform handles up to 24,000 pounds, the highest capacity in the line.
|
Presto-Lifts XS-Series Scissors Lift Tables, 5.25" to 41.25" Travel, 1,000-1,500 lbs cap.
XS-Series table offers a compact, lighter-duty lifting solution.
|
Bishamon Compact Scissors Lift Table, 5" to 54.25" Travel, 440 to 1,650 lbs cap.
Compact design suits lighter loads in space-constrained work areas.
|
Autoquip Compact Scissors Lift Tables, 5" to 94" Travel, 500-12,000 lbs cap.
Compact footprint with travel up to 94 inches and capacity up to 12,000 pounds.
|
Lift Products SXT-Series Stainless Steel Lift Table, 9" to 36" Travel, 4,000 lbs cap.
Stainless steel construction supports washdown and food-grade environments.
|
Bishamon Alpha Scissors Lift Tables, 11.5" to 51" Travel, 2,200 to 6,600 lbs cap.
Alpha series scissor lift offers 2,200 to 6,600-pound capacity across a 51-inch travel range.
|
Lift Products Roto-Max Scissors Lift Tables, 6.5" to 32.5" Travel, 2,500-3,500 lbs cap.
The Roto-Max table combines lifting and rotation for flexible positioning tasks.
|
Bishamon Alpha Scissors Lift Tables, 11.5" to 51" Travel, 2,200 to 6,600 lbs cap.
Alpha series scissor lift offers 2,200 to 6,600-pound capacity across a 51-inch travel range.
|
Presto-Lifts Manual Scissors Lift Tables, 5.25" to 43" Travel, 1,000-2,000 lbs cap.
Manual-operation lift table suited for lighter-duty positioning tasks.
|
Autoquip Series 35 Rover Mobile Scissors Lift Table, 14.5" to 63" Travel
Mobile rover design brings scissor lift capability directly to the point of use.
|
|
| Low Profile Lift Tables |
|
Autoquip Series 35 Low Profile Scissors Lift Table, 5" to 53" Travel, 1,000 to 4,000 lbs cap.
Low-profile design allows loading at floor level with a capacity of up to 4,000 pounds.
|
Bishamon Low Profile Scissors Lift Tables, 2.9" to 39.4" Travel, 550-4,400 lbs cap.
Low starting height simplifies loading with a pallet jack or hand truck.
|
Lift Products Low Profile Scissors Lift Tables, 3.25" to 34" Travel, 1,100-3,300 lbs cap.
Compact low-profile design suited for tight clearance under the load.
|
Lift Products Low Profile Scissors Lift Tables, 4.25" to 35" Travel, 2,000 lbs cap.
Low-profile table with a fixed 2,000-pound capacity for consistent daily use.
|
Lift Products Stainless Galvanized Guardian Lift Table, 3.25" to 34" Travel, 1,100-3,300 lbs cap.
Stainless and galvanized construction supports washdown and corrosive environments.
|
|
| Floor Level Lift Tables |
|

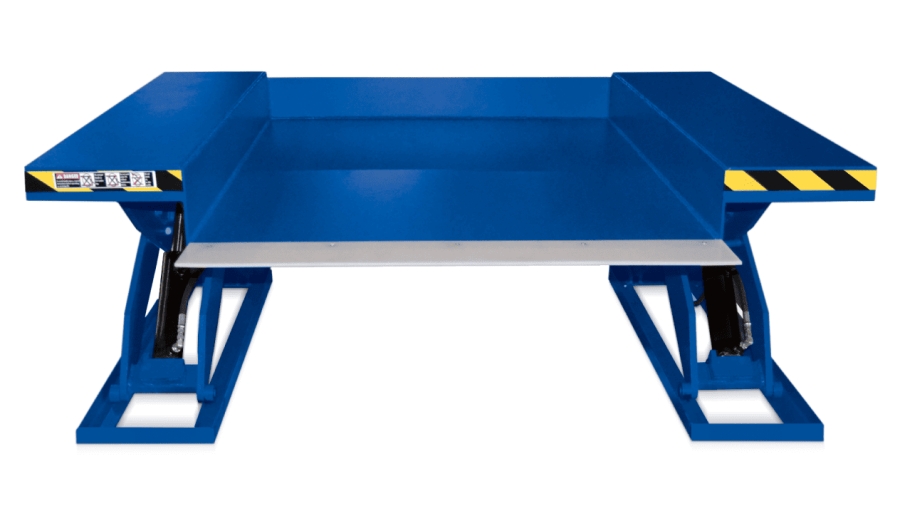

Blue Giant Zero Ground Level Scissor Lifts, 3/8" to 36-1/2" Travel, 2,000 to 4,000 lbs cap.
Zero-ground-level design enables direct pallet-jack loading without a ramp.
|
Presto-Lifts Floor Level Scissors Lift Tables, 3/8" to 35-3/8" Travel, 2,000-6,000 lbs cap.
Floor-level loading supports up to 6,000 pounds for warehouse pallet handling.
|
Bishamon EZ-Off Floor Level Lift Tables, 1.75" to 30" Travel, 2,500 lbs cap.
EZ-Off design simplifies floor-level pallet loading and unloading.
|
Lift Products U-Lift Floor Level Lift Table, 3-1/8" to 33-7/8" Travel, 2,200-3,300 lbs cap.
U-Lift design supports zero-threshold pallet loading at floor level.
|
Lift Products E-Lift Floor Level Lift Table, 3-1/8" to 33-7/8" Travel, 2,200 lbs cap.
E-Lift design provides consistent 2,200-pound capacity floor-level loading.
|
Presto-Lifts Floor Level Lift Table, 3/8" to 33-1/2" Travel, 2,000-4,000 lbs cap.
Floor-level access supports up to 4,000 pounds for pallet jack loading.
|
Lift Products Stainless Galvanized U-Lift Table, 3.12" to 33.87" Travel, 2,200-3,300 lbs cap.
Stainless and galvanized construction suits washdown and corrosive environments.
|
Presto-Lift P4 Floor Level Lift Tables, 3/8" to 28" Travel, 2,500-4,000 lbs cap.
P4 floor-level table offers a lower travel range for compact applications.
|
Lift Products Stainless E-Lift Low Profile Table, 3.12" to 33.87" Travel, 2,200 lbs cap.
Stainless construction combines low-profile access with washdown durability.
|
Bishamon Lift Pilot Floor Level Lift, 38" Lifting Height, 2,500 lbs cap.
Lift Pilot design offers a fixed 38-inch lifting height for consistent positioning.
|
Presto Lift P4 Floor Level Lift with Turntable, 2,500 lbs cap.
Integrated turntable adds load rotation to floor-level lifting.
|
Presto Lifts Floor Level Lift Table, 3-1/8" to 31-1/2" Travel, 2,200 lbs cap.
Floor-level table provides consistent 2,200-pound capacity for daily use.
|
| Floor Level Pallet Turntables |
Presto-Lifts LPT Floor Level Pallet Turntables, 4,000 lbs cap.
LPT turntable rotates loaded pallets at floor level for easier access.
|
Presto-Lifts RFT Floor Level Portable Pallet Turntables, 4,000 lbs cap.
Portable turntable design allows repositioning across multiple work areas.
|
Bishamon Floor Mount Turntable, Model Floor TT, 4,500 lbs cap.
Floor-mounted turntable rated to 4,500 pounds for permanent installation.
|
| Self-Leveling Positioner |

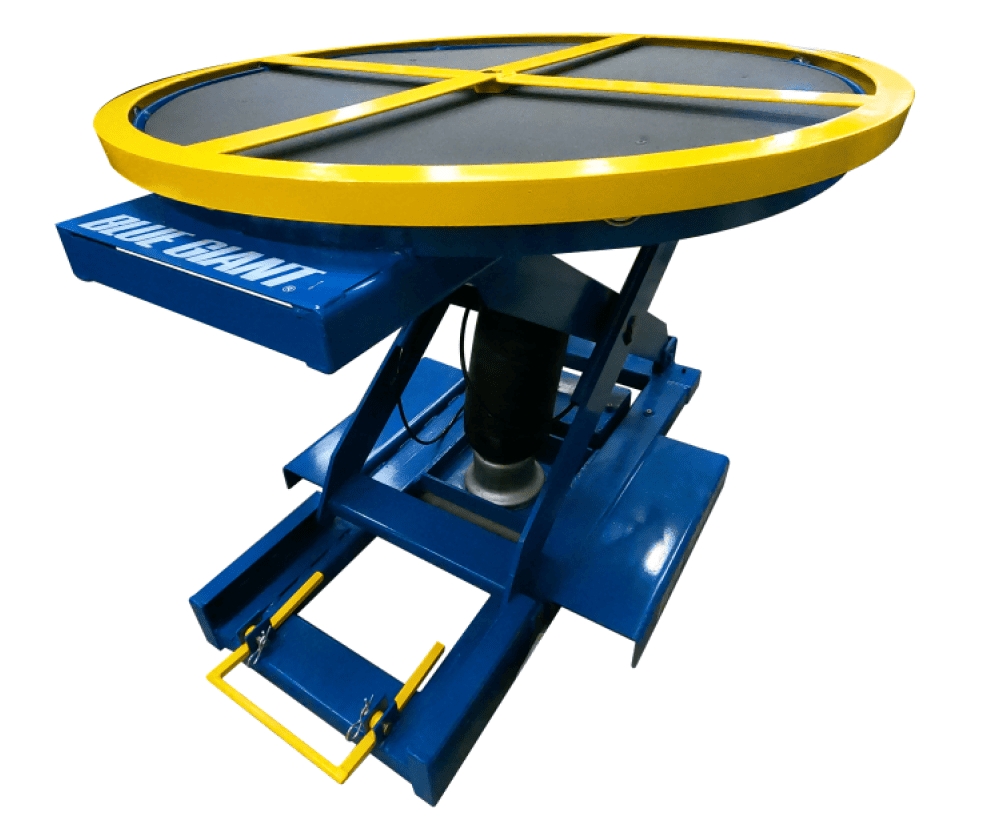

Blue Giant Automatic Pallet Positioner, 400-3,500 lb capacity.
The automatic self-leveling design maintains a consistent feed height during production.
|
Lift Products Air Self-Leveling Positioner, 9.5" to 28" Travel, 440 to 4,400 lbs cap.
Air-powered positioner automatically adjusts to maintain optimal working height.
|
Presto-Lifts Pneumatic Pallet Positioner, 9.5" to 27.75" Travel, 1,500-3,000 lbs cap.
The pneumatic positioner keeps the load height consistent as materials are removed.
|
Bishamon EZ-Loader Self-Leveling Positioner, 9.63" to 30.5" Travel, 250-3,500 lbs cap.
EZ-Loader design automatically levels to maintain a consistent working surface.
|
Presto-Lifts P3-AA Self-Leveling Positioner, 9.5" to 27.75" Travel, 400-4,500 lbs cap.
P3-AA positioner spans a wide 400 to 4,500-pound capacity range.
|
|
|
