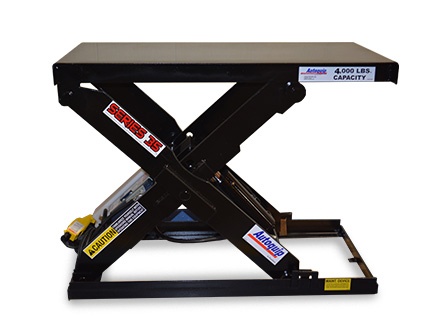

Autoquip Series 35 Scissor Lift Tables

Prices are shown by manufacturer model number.
Compare the exact same item across competitors - no extra searching.
| Model Number | Platform Size | Travel | Capacity | Price | View Model |
|
24" wide x 36" long
|
6.5" to 30.5"
|
2,500 pounds
|
$7,312.52
|
||
|
24" wide x 36" long
|
6.5" to 30.5"
|
4,000 pounds
|
$7,288.91
|
||
|
24" wide x 36" long
|
6.5" to 30.5"
|
6,000 pounds
|
$8,204.44
|
||
|
24" wide x 36" long
|
7" to 31"
|
8,000 pounds
|
$8,647.45
|
||
|
24" wide x 48" long
|
6.5" to 42.5"
|
2,500 pounds
|
$6,078.03
|
||
|
24" wide x 48" long
|
6.5" to 42.5"
|
4,000 pounds
|
$6,166.62
|
||
|
24" wide x 48" long
|
6.5" to 42.5"
|
6,000 pounds
|
$6,803.37
|
||
|
24" wide x 48" long
|
7" to 43"
|
8,000 pounds
|
$7,229.84
|
||
|
24" wide x 64" long
|
7" to 55"
|
2,500 pounds
|
$6,698.23
|
||
|
24" wide x 64" long
|
7" to 55"
|
4,000 pounds
|
$7,029.00
|
||
|
24" wide x 64" long
|
7" to 55"
|
6,000 pounds
|
$7,708.28
|
||
|
24" wide x 64" long
|
7.5" to 55.5"
|
8,000 pounds
|
$9,001.86
|
||
|
32" wide x 87" long
|
8" to 68"
|
2,500 pounds
|
$13,892.61
|
||
|
32" wide x 87" long
|
8" to 68"
|
4,000 pounds
|
$14,695.94
|
||
|
32" wide x 87" long
|
8" to 68"
|
6,000 pounds
|
$15,186.19
|
||
|
32" wide x 90" long
|
12" to 72"
|
8,000 pounds
|
$26,579.09
|
||
|
32" wide x 90" long
|
12" to 72"
|
10,000 pounds
|
$27,407.21
|
||
|
32" wide x 90" long
|
12.5" to 72.5"
|
12,000 pounds
|
$29,108.34
|
||
|
32" wide x 90" long
|
12.5" to 72.5"
|
15,000 pounds
|
$29,964.83
|
Autoquip states that the Series 35 is built in accordance with ANSI MH29.1, and its sheet also lists NFPA 70, ASTM A36, ANSI Z535, AWS D1.1 and the applicable parts of OSHA 29 CFR 1910. On-board maintenance devices let crews block the scissors open during service, and hydraulic velocity fuses stop uncontrolled descent if a hose ruptures. Autoquip lists a 2 year warranty on all parts.
Three choices drive selection: platform size, travel and capacity. Lift time depends on both. Autoquip lists 8 seconds up for the 2,500 lb 24 in. travel model and up to 60 seconds for the 12,000 and 15,000 lb models. Options include accordion skirts, handrails, conveyors, a portability set, limit switches, key-operated lockouts, remote power units, a High Cycle package and pit mounting.
Product Lines
The S35-024 models have a 24 x 36 in. platform, raise from 6.5 to 30.5 in. (7 to 31 in. at 8,000 lb) and come in 2,500, 4,000, 6,000 and 8,000 lb. The S35-036 models have a 24 x 48 in. platform and raise from 6.5 to 42.5 in. (7 to 43 in. at 8,000 lb) in the same four capacities. The S35-048 models have a 24 x 64 in. platform and raise from 7 to 55 in. (7.5 to 55.5 in. at 8,000 lb) in the same four capacities. The S35-060 models have a 32 x 87 in. platform and raise from 8 to 68 in. at 2,500, 4,000 and 6,000 lb, a 32 x 90 in. platform and raise from 12 to 72 in. at 8,000 and 10,000 lb, and a 32 x 90 in. platform that raises from 12.5 to 70.5 in. at 12,000 and 15,000 lb. Autoquip lists shipping weights from 500 lb to 4,700 lb.
How to Select the Right Model
◆ Choose the travel first. Raised height is 30.5 in. (24 in. travel), 42.5 in. (36 in.), 55 in. (48 in.) or 68 to 72 in. (60 in. series).
◆ Match the platform to the load. Larger platforms are available (up to 48 x 60, 48 x 72, 48 x 96 or 60 x 120 in. depending on the series), so confirm the capacity for the size you choose.
◆ Choose the capacity from the heaviest load, including pallet, tooling and fixtures. Only the S35-060 series goes above 8,000 lb.
◆ Check the lowered height against your loading method. The lift tables guide notes that a table that will not go below seven inches cannot be loaded by pallet jack. The 24 and 36 in. travel models lower to 6.5 in., and the others lower to 7 to 12.5 in.
◆ Confirm the power supply. Autoquip lists a 5 hp motor on the 60 in. travel models rated 8,000 lb and above.
◆ Ask about accordion skirts, handrails, a portability set and the High Cycle package for the way the table will be used.
How do you match travel and capacity?
See travel and capacity
Where Autoquip Series 35 Lift Tables Are Most Commonly Used
Pallet handling and dock operations, assembly and production workstations, heavy manufacturing and fabrication, and maintenance and service bays.
CustomMHS carries the full line of Autoquip Series 35 scissor lift tables, backed by the manufacturer’s warranty.
