| Mobile lift equipment lets operators raise, position, and move loads at the point of work instead of carrying material to a fixed lifting station. CustomMHS carries manual, battery-powered, and fully powered stackers with lift heights up to 130 inches, pallet trucks up to 4,000 lb, skid lifts, scissor and self-leveling lift carts, box and reel rotators, container tilters, and stainless steel versions for washdown, food, and pharmaceutical areas, from Logitrans, Presto Lifts, Wesco, Lift Products, and Autoquip.
| Manual and Powered Lift Carts |
Manual Scissor Lift Cart
Manually operated scissor lift raises and positions loads at the point of work.
|
Battery Scissor Lift Cart
Battery-powered lifting reduces operator effort for frequent height adjustments.
|
Self-Leveling Carts
Automatically maintains a consistent working height as material is removed.
|
Lift Products Linear Actuated Lift Cart
Linear actuator provides smooth, precise height adjustment during positioning.
|

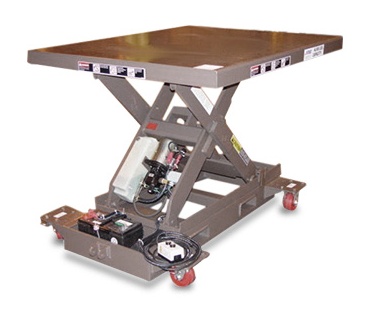

Autoquip Series 35 Rover
Mobile rover design brings scissor lift capability directly to the point of use.
|
|
| Manual and Powered Skid Lifts |
Manual Skid Lift Trucks
Manually operated lifts raise and transport skids without a forklift.
|

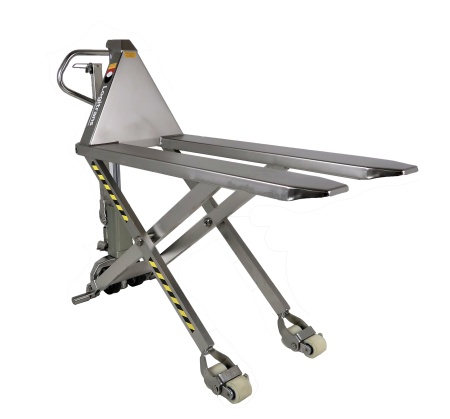

Logitrans Manual Stainless-Plus Thork Skid Lift
Stainless steel construction supports washdown and sanitary environments.
|
Powered Skid Lift Trucks
Powered lift reduces manual effort when raising and transporting skids.
|
Logitrans Battery Powered Stainless Steel Inox Plus Thork Skid Lift
Battery power combined with stainless construction for sanitary, high-frequency use.
|
|
Lift Products Battery Powered Stainless Steel Skid Lift
Battery-powered lifting with stainless construction for corrosive or washdown environments.
|
|
| Manual Lift - Manual Push Stackers |
|
Logitrans LF Mini Manual Stackers
Compact manual stacker suited for lighter loads in tight spaces.
|
Logitrans LFS Mini Manual Stackers
Compact straddle-leg manual stacker for lighter-duty lifting tasks.
|

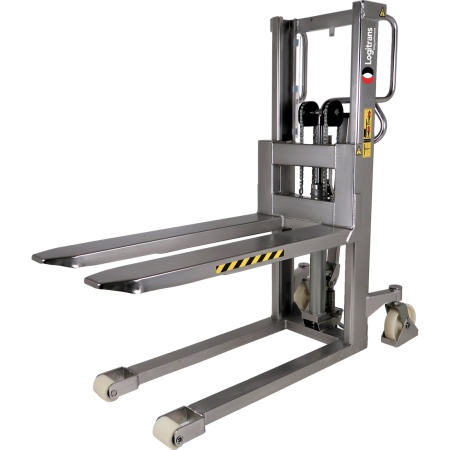

Logitrans Stainless Steel Manual Inox HSI-Series Stacker
Stainless steel construction suits food, pharma, and washdown applications.
|
Compact Manual Power Lift Stackers, With Forks or Platform
Choose forks or a platform base to match your load type.
|
| Battery-Powered Lift - Manual Push Stackers |
|
Compact & Lightweight Power Lift Stackers
Lightweight design combines battery-powered lift with easy manual maneuvering.
|
Battery-Powered Lift Stackers
Battery-powered lift reduces operator fatigue during repeated stacking tasks.
|

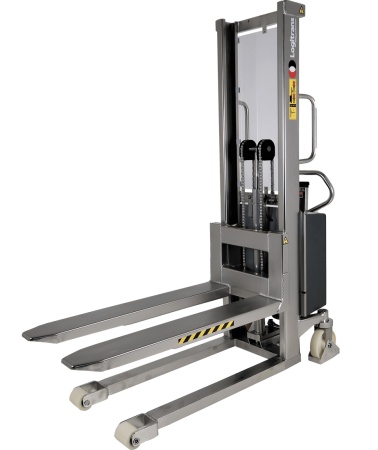

Logitrans EHSI-1000 Powered Stainless Steel Inox Stacker
Stainless steel construction supports washdown and food-grade stacking applications.
|
Battery-Powered Lift, Straddle Legs Stacker
Straddle-leg base adds stability for battery-powered stacking operations.
|

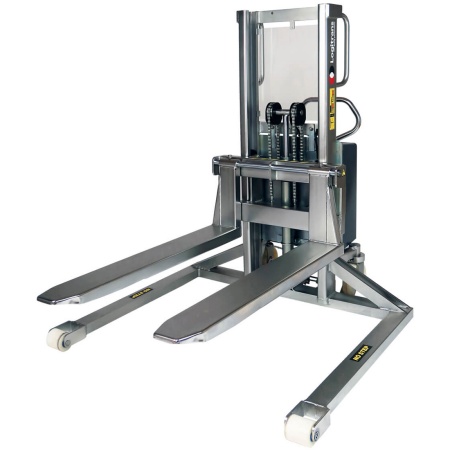

Logitrans Battery EHSS-1000 Powered Stainless Steel Straddle Stacker
Stainless straddle-leg stacker suited for sanitary, high-frequency environments.
|
|
| Battery-Powered Lift - Powered Drive Stackers |
|
Logitrans Logiflex Self Mini-1000 Stacker, 36" to 65" Lift
This powered drive stacker reaches up to 65 inches with a 2,200-pound capacity.
|

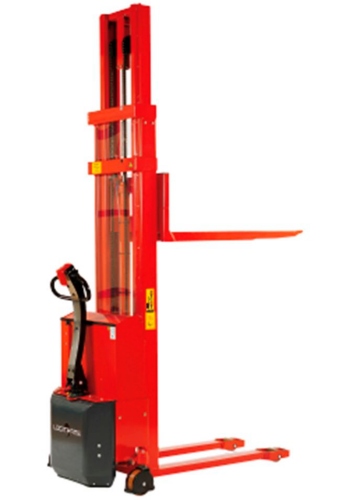

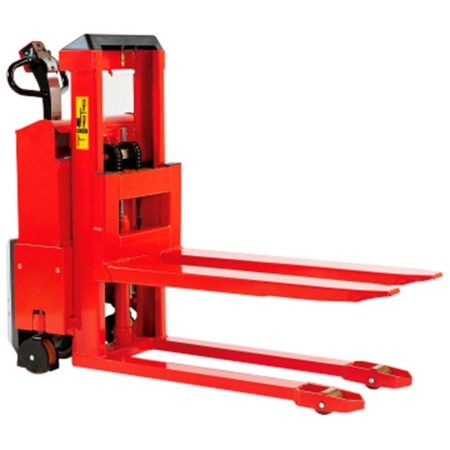

Logitrans Logiflex Self Maxi-1003 Stacker, 36" to 130" Lift Height
Extended lift height up to 130 inches suits taller racking and staging needs.
|
Logitrans Logiflex Self-Maxi-1203 Stacker, Up to 63" Lift Height
Higher 3,000-pound capacity supports heavier powered-drive stacking applications.
|
Manual Pallet Trucks
Manually operated trucks move palletized loads across the warehouse floor.
|
Stainless Steel Pallet Trucks
Stainless construction suits washdown and corrosion-sensitive environments.
|
Scale Pallet Trucks
Built-in scale weighs palletized loads during transport for added efficiency.
|
| Battery-Powered Pallet Truck |
|

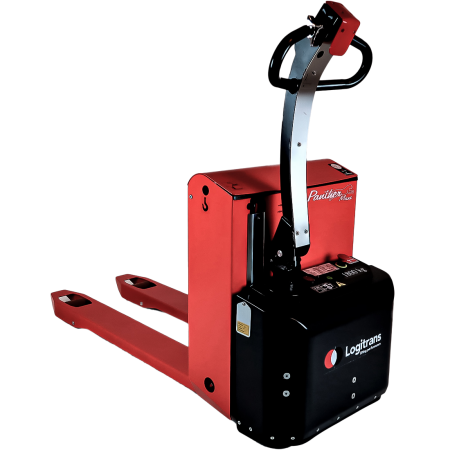

Logitrans Panther Maxi Fully Powered Pallet Truck
Fully powered operation moves loads up to 4,000 pounds with minimal operator effort.
|

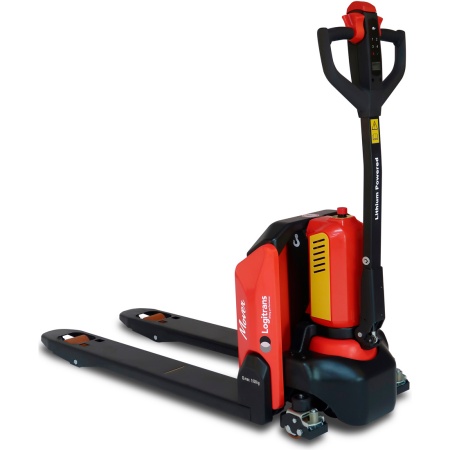

Logitrans Lithium Fully Powered Pallet Truck
Lithium battery power delivers 3,300-pound capacity with longer runtime between charges.
|
| Manual and Battery Powered Counterbalanced Stackers |
|

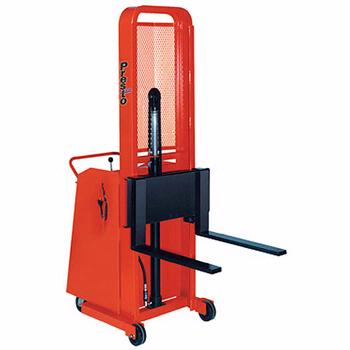

Presto Lifts Battery Powered Lift Stackers, 200-1,000 lbs.
Counterbalanced design lifts without outrigger legs in tighter aisles.
|

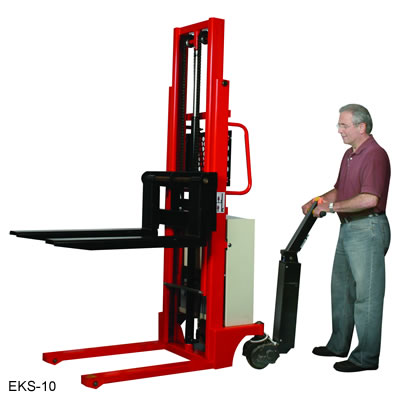

Wesco Battery Powered Lift Stackers, 1,000 lbs.
Battery-powered counterbalance stacker rated to 1,000 pounds.
|

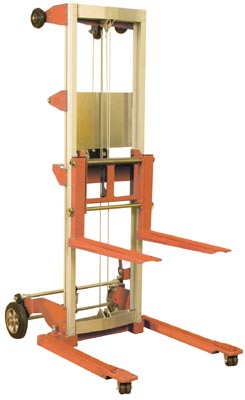

Wesco Counterbalance Hand Winch Lifters, 350-500 lbs.
Manual hand winch operation for lighter-duty counterbalanced lifting.
|

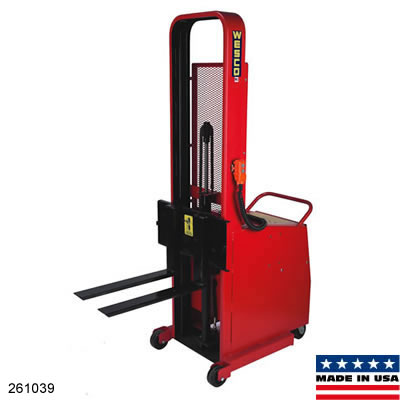

Wesco Fully Powered Counterbalance
Higher 2,200-pound capacity for heavier counterbalanced lifting tasks.
|
|

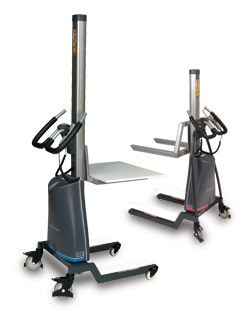

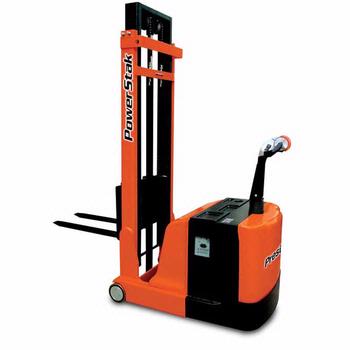

Presto Lifts Fully PowerStak Stackers
Fully powered stacker rated to 1,100 pounds for consistent daily use.
|
|

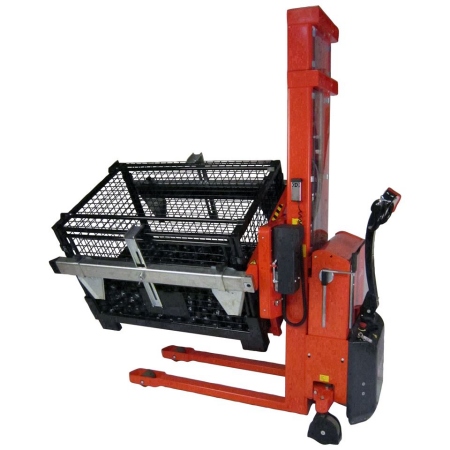

| Logitrans Rotators with Adjustable Box Holders |
Logitrans ELFRA-1001 Series Rotator, Adjustable Box Holder, Fork Over
Adjustable holder accommodates varying box widths with manual push operation. Powered Lift - Manual Push
|
Logitrans ELFSRA-1001 Series Rotator, Adjustable Box Holder, Straddle Legs
Straddle-leg design adds stability for adjustable-width box rotation. Powered Lift - Manual Push
|
Logitrans SELFRA-1003 Series Rotator, Adjustable Box Holder, Fork Over
Powered drive adds mobility to adjustable box rotation and tilting. Powered Lift - Powered Drive
|
Logitrans SELFSRA-1003 Series Rotator, Adjustable Box Holder, Straddle Legs
Powered drive and straddle-leg stability for adjustable-width box handling. Powered Lift - Powered Drive
|
| Logitrans Rotators with Fixed Box Holders |
|

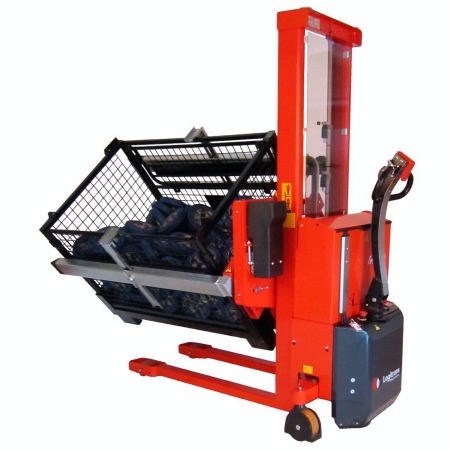

Logitrans ELFR-1001 Series Rotator, Non-Adjustable Box Holder, Fork Over
Fixed box holder suited for consistent box sizes with manual push operation. Powered Lift - Manual Push
|
Logitrans SELFR-1003 Series Rotator, Non-Adjustable Box Holder, Fork Over
Powered drive adds mobility for fixed-size box rotation tasks. Powered Lift - Powered Drive
|
Logitrans ELFSR-1001 Series Rotator, Non-Adjustable Box Holder, Straddle Legs
Straddle-leg design adds stability for fixed-size box rotation. Powered Lift - Manual Push
|
Logitrans SELSFR-1003 Series Rotator, Non-Adjustable Box Holder, Straddle Legs
Powered drive and straddle-leg stability for fixed-size box handling. Powered Lift - Powered Drive
|

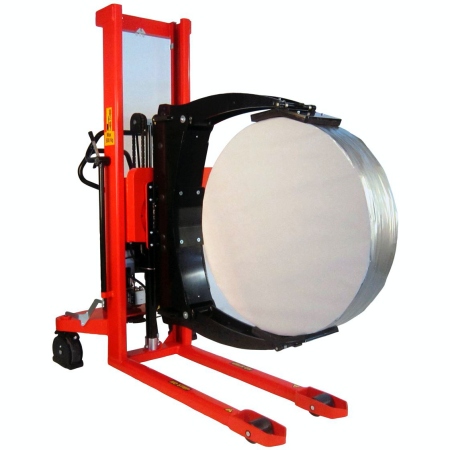

| Logitrans Fork Over Design and Straddle Leg Reel Rotators |
|
The Logitrans Reel Lifter, Series RL-500, is purpose-built for safe, controlled handling of wire and cable reels.
Its design minimizes the risk of dropped or mishandled reels during positioning and transport.
|

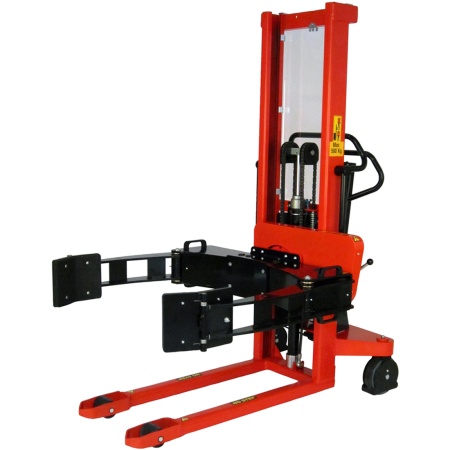

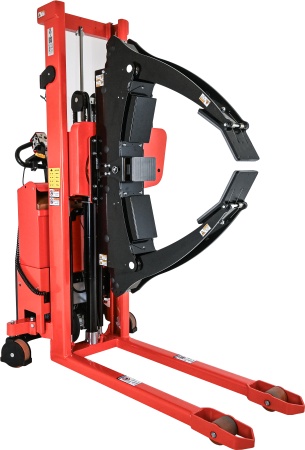

Logitrans Reel Rotator, Manual Lift, Manual Push, Manual Rotation, Manual Clamping, Series LFRRM 1001
Fully manual operation for lighter-duty reel handling tasks.
|
Logitrans Reel Rotator, Electric Lift, Manual Push, Manual Rotation, Electric Clamping, Series ELFRRM 1001
Electric lift and clamping reduce manual effort during reel positioning.
|
Logitrans Reel Rotator, Electric Lift, Manual Push, Electric Rotation, Electric Clamping, Series ELFRR 1001
Electric rotation adds precision control for reel orientation tasks.
|

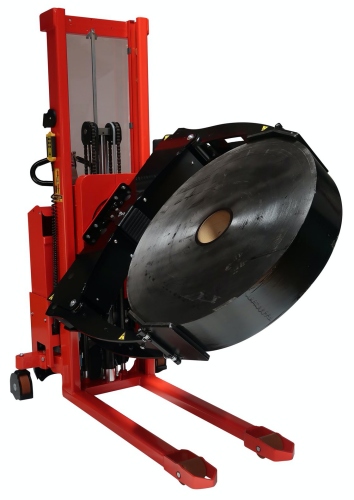

Logitrans Reel Rotator, Electric Lift, Electric Push, Electric Rotation, Electric Clamping, Series SELFRR Maxi 1003
Fully powered operation for high-frequency reel handling applications.
|

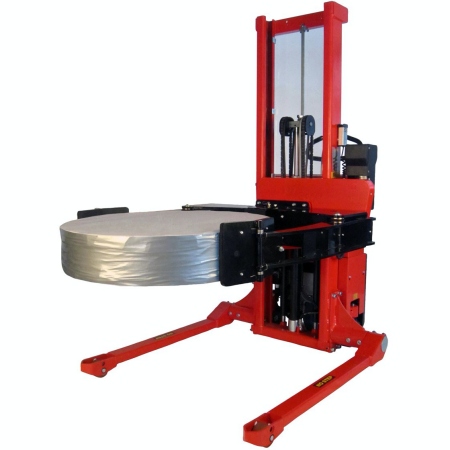

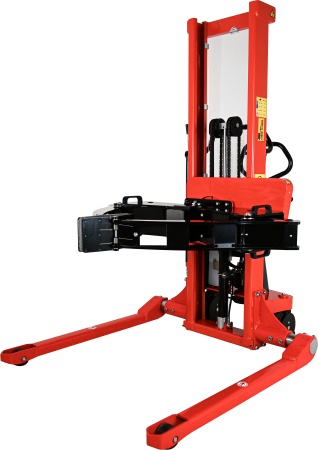

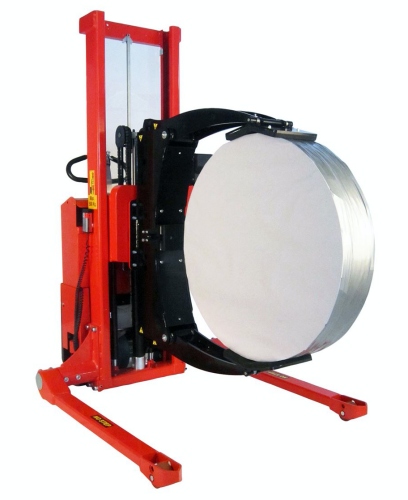

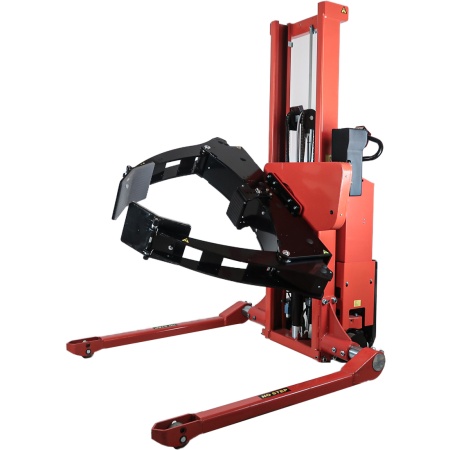

Logitrans Straddle Legs Reel Rotator, Manual Lift, Manual Push, Manual Rotation, Manual Clamping, Series LFSRRM 1001
The straddle-leg base adds stability for fully manual reel rotation.
|
Logitrans Straddle Legs Reel Rotator, Electric Lift, Manual Push, Manual Rotation, Electric Clamping, Series ELFSRRM 1001
Electric lift and clamping reduce effort when handling straddle-leg reels.
|
Logitrans Straddle Legs Reel Rotator, Electric Lift, Manual Push, Electric Rotation, Electric Clamping, Series ELFSRR 1001
Electric rotation adds precision to straddle-leg reel positioning.
|
|
Logitrans Straddle Legs Reel Rotator, Electric Lift, Electric Push, Electric Rotation, Electric Clamping, Series SELFSRRE Maxi 1003
Fully powered straddle-leg design for high-frequency reel operations.
|
|
| Manual & Powered Pallet Tilters |
|
Logitrans Battery Powered Logitilt Tilter, 2,200 lbs.
Battery-powered tilting simplifies emptying and accessing container contents.
|
Logitrans Battery Powered Logitilt Straddle Leg Tilter, 2,200 lbs.
Straddle-leg base adds stability to battery-powered container tilting.
|
Logitrans Stainless Steel Logitilt Tilter, 2,200 lbs.
Stainless steel construction suits washdown and food-grade tilting applications.
|
Lift Products Maxx-Mobile
Battery Powered Tilter
|
|
Lift Products Maxx-Mobile
Manual Tilter
|
|
| Adjustable Post Lift Table |
|

Adjustable Post Lift Tables, Ergonomic Height-Adjustable Work Positioning Table for Dies, Castings, and Machine Parts
|
The most useful way to size a machine is to count lifts and travel distance, not pounds. Occasional lifting of lighter loads suits a manual stacker, frequent lifting over short distances suits powered lift with manual push, and long runs or ramps justify powered drive. Capacity is also quoted at a stated load center, normally 24 inches, which matches a 48 inch deep pallet. A 3,000 lb machine rated at 24 inches handles about 2,400 lb on a 60 inch deep load and 2,000 lb on a 72 inch deep load. The failure mode is forward tipping, so attachments such as rotators and tilters that add weight ahead of the forks count against the rating, and capacity can also drop near the top of the mast, so check the figure at your highest working height.
Powered units also carry a training obligation. OSHA 29 CFR 1910.178 covers fork trucks, platform lift trucks, motorized hand trucks, and other industrial trucks powered by electric motors or internal combustion engines, so a battery-powered stacker or pallet truck falls under it. Operators must complete training and evaluation before operating the truck, except for training purposes, and each operator’s performance must be evaluated at least once every three years. A fully manual stacker or pallet truck has no motor and sits outside that standard, which is why many operations stay manual for occasional work and add powered lift only where the frequency justifies it.
Product Lines
Manual and powered lift carts, including battery scissor carts, self-leveling carts, the Lift Products linear actuated cart, and the Autoquip Series 35 Rover; manual and powered skid lifts with stainless steel options; Logitrans manual, battery-powered lift, and powered drive stackers, including the Logiflex Self series with lift heights up to 130 inches, along with Presto Lifts and Wesco counterbalanced stackers and hand winch lifters; manual, scale, stainless steel, and fully powered pallet trucks, including a lithium model; Logitrans box and crate rotators with adjustable or fixed holders in fork-over and straddle leg designs; reel lifters and reel rotators from fully manual to fully powered; Logitilt and Maxx-Mobile container tilters; and adjustable post lift tables.
Selecting the Right Type
♦ Power and drive, count cycles and travel distance rather than weight, using manual for occasional lifts, powered lift with manual push for frequent lifts over short distances, and powered drive for long runs or ramps.
♦ Base style, choose straddle legs when they fit around the load for the best stability and capacity per dollar, fork-over for open-bottom pallets in a narrower package, or counterbalance for floor, bench, wall-adjacent, or in-truck loads at lower capacity.
♦ Capacity, confirm the rating at your actual load center and at your maximum working height, since loads deeper than 48 inches and attachments both reduce what the machine can safely lift.
♦ Load type, choose pallet trucks for pallets, skid lifts for solid-base skids a pallet truck cannot lift, lift carts and self-leveling carts for work-cell height, rotators and tilters for emptying or presenting contents, and reel lifters and rotators for wire and cable reels.
♦ Environment, choose stainless steel models for washdown, food, and pharmaceutical areas, and confirm enclosed mechanisms and the stainless grade against your cleaning chemicals.
♦ Battery, choose lead-acid for single-shift operations that charge overnight, or lithium with fast-swap batteries for multi-shift use where downtime is costly.
Where Commonly Used
Mobile lift equipment is used at work cells, assembly stations, staging areas, and packing lines to position loads at working height, in warehouses and receiving areas to move and stack pallets and skids, in food, pharmaceutical, and washdown facilities where stainless steel models resist corrosion, and in wire and cable operations where reel rotators and lifters keep heavy reels under control.
CustomMHS carries mobile lift equipment from Logitrans, Presto Lifts, Wesco, Autoquip, and Lift Products. All purchases include the manufacturer’s factory warranty. |
