MECO 3-Inch Structural Pallet Rack Upright Frames

Imagem

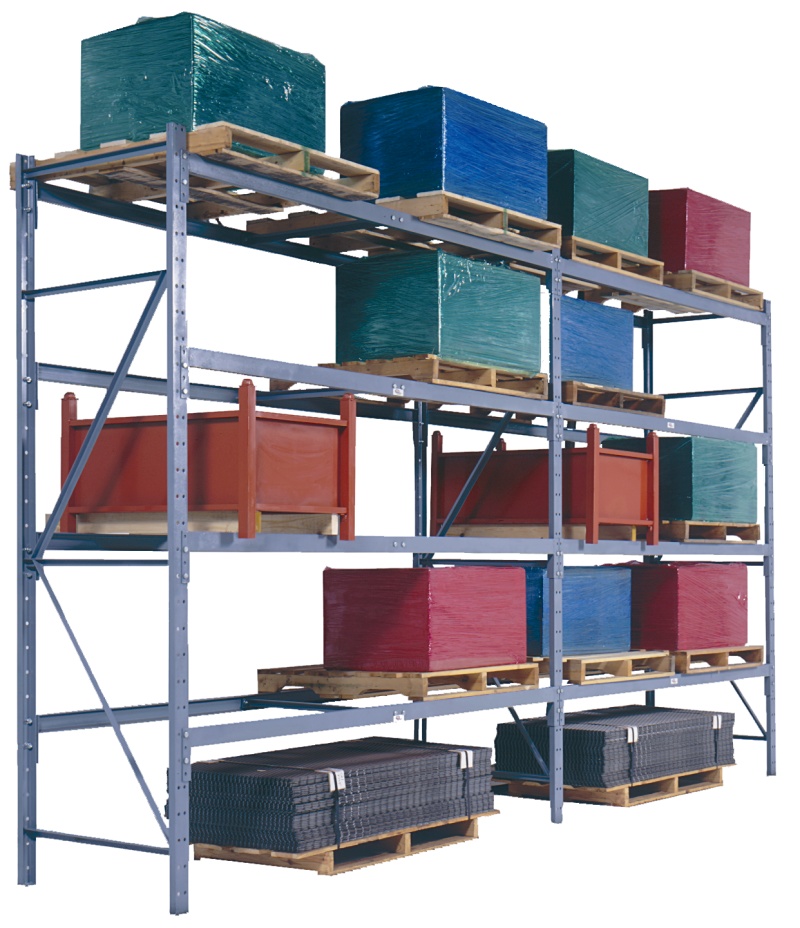

MECO Structural Pallet Rack Upright Frame Only

MECO 3-inch structural pallet rack upright frames are all-welded, rigid frames built for heavy-duty pallet rack systems. Fabricated from structural steel channels, they offer greater impact resistance than roll-formed uprights and are designed in accordance with AISC and RMI standards. Each frame includes 3" x 3" base plates and installs using standard tools.

Frames are available in three depths (36", 42", and 48") and ten heights (8' through 24'). All 30 models carry a maximum capacity of 34,800 pounds per bay when vertical beam spacing does not exceed 60".

This page covers upright frames only. Structural beams, starter units, and add-on units are sold separately.

Selecting the Right Frame Depth and Height:

Frame depth is determined by pallet depth and desired overhang. A 48" deep pallet is typically stored on a 42" deep frame, allowing approximately 3" of overhang at the front and 3" at the back. For shallower pallets or tighter footprints, the 36" frame is common. The 48" frame is suited to oversized loads or applications requiring additional pallet support.

Frame height is determined by ceiling height, sprinkler clearance requirements, and forklift lift limitations. Select the tallest frame that fits within those constraints to maximize vertical storage capacity.

Use a starter unit to begin each rack row. Use add-on units to extend the row. Upright frames may also be ordered individually to replace damaged components without disturbing the rest of the system.

Where Commonly Used:

♦ General Warehousing: Selective pallet rack rows for storing palletized goods, including cartons, bulk materials, and parts bins, in standard warehouse environments.

♦ Distribution Centers: High-bay storage supporting forklift-accessed pallet positions in fast-moving fulfillment and distribution operations.

♦ Manufacturing Facilities: Storage of raw materials, WIP, and finished goods on pallets alongside production lines where racks must withstand incidental forklift contact.

♦ Heavy-Duty Storage: Applications requiring impact-resistant structural steel construction rather than roll-formed rack, including environments with oversized or irregularly weighted pallet loads.

♦ Rack Repair and Replacement: Individual upright frame replacement in existing MECO structural pallet rack rows following damage, without requiring full system replacement.

♦ Layout Reconfiguration: Adding bays or changing upright height or depth when inventory profiles change or facilities are reorganized.

Prices are shown by manufacturer model number.
Compare the exact same item across competitors - no extra searching.

Model Number Size Upright Channel: Size & Weight Capacity per Bay Price View Model
36" deep x 8' tall
3" structural channel / 76 lb
34,800 pounds capacity
$136.35
36" deep x 10' tall
3" structural channel / 93 lb
34,800 pounds capacity
$156.55
36" deep x 12' tall
3" structural channel / 126 lb
34,800 pounds capacity
$202.30
36" deep x 14' tall
3" structural channel / 146 lb
34,800 pounds capacity
$243.41
36" deep x 15' tall
3" structural channel / 159 lb
34,800 pounds capacity
$247.45
36" deep x 16' tall
3" structural channel / 167 lb
34,800 pounds capacity
$258.56
36" deep x 18' tall
3" structural channel / 187 lb
34,800 pounds capacity
$290.88
36" deep x 20' tall
3" structural channel / 211 lb
34,800 pounds capacity
$323.20
36" deep x 22' tall
3" structural channel / 228 lb
34,800 pounds capacity
$381.78
36" deep x 24' tall
3" structural channel / 252 lb
34,800 pounds capacity
$417.13
42" deep x 8' tall
3" structural channel / 78 lb
34,800 pounds capacity
$140.39
42" deep x 10' tall
3" structural channel / 95 lb
34,800 pounds capacity
$161.60
42" deep x 12' tall
3" structural channel / 129 lb
34,800 pounds capacity
$208.06
42" deep x 14' tall
3" structural channel / 149 lb
34,800 pounds capacity
$250.48
42" deep x 15' tall
3" structural channel / 162 lb
34,800 pounds capacity
$252.50
42" deep x 16' tall
3" structural channel / 170 lb
34,800 pounds capacity
$264.62
42" deep x 18' tall
3" structural channel / 190 lb
34,800 pounds capacity
$298.96
42" deep x 20' tall
3" structural channel / 215 lb
34,800 pounds capacity
$330.27
42" deep x 22' tall
3" structural channel / 232 lb
34,800 pounds capacity
$390.87
42" deep x 24' tall
3" structural channel / 257 lb
34,800 pounds capacity
$427.23
48" deep x 8' tall
3" structural channel / 79 lb
34,800 pounds capacity
$148.47
48" deep x 10' tall
3" structural channel / 97 lb
34,800 pounds capacity
$161.60
48" deep x 12' tall
3" structural channel / 131 lb
34,800 pounds capacity
$208.06
48" deep x 14' tall
3" structural channel / 151 lb
34,800 pounds capacity
$251.49
48" deep x 15' tall
3" structural channel / 165 lb
34,800 pounds capacity
$254.52
48" deep x 16' tall
3" structural channel / 173 lb
34,800 pounds capacity
$265.63
48" deep x 18' tall
3" structural channel / 193 lb
34,800 pounds capacity
$299.97
48" deep x 20' tall
3" structural channel / 221 lb
34,800 pounds capacity
$333.30
48" deep x 22' tall
3" structural channel / 235 lb
34,800 pounds capacity
$391.88
48" deep x 24' tall
3" structural channel / 260 lb
34,800 pounds capacity
$429.25

Frequently Asked Questions (FAQs)

What is the MECO Structural Pallet Rack Upright Frame
The MECO Structural Pallet Rack Upright Frame is a welded frame that provides vertical support for a rack bay. It pairs with structural beams and bracing to hold pallets safely at height. Because the frame carries the load to the floor, it helps organize bulk inventory and free up aisle space. Capacity can reach 34,800 pounds per bay, depending on beam size, spacing, and overall rack design. That rating assumes a maximum vertical beam spacing of 60 inches or less.
How do upright frames improve day-to-day warehouse operations?
Upright frames create consistent storage locations, which makes put-away and picking easier to standardize. Clear bay spacing supports cleaner travel paths for forklifts and pallet jacks. Better vertical storage helps reduce floor stacking and improves access to each pallet position. When frames are matched to your layout, they can support higher-density storage without crowding aisles. This can also make cycle counts and inventory audits more efficient.
What key features should I know about MECO 3-inch structural upright frames?
MECO 3-inch structural upright frames use rigid, all-welded construction for heavy-duty pallet rack systems. They are fabricated from structural channels, which resist impacts better than many roll-formed designs. MECO structural pallet racking is designed in line with AISC and RMI guidance.
How do I choose the right upright height and depth for my facility?
Choose upright height by matching your ceiling height, sprinkler requirements, and forklift lift limits. Leave room for required clearances to allow the rack to be inspected and maintained. Select frame depth based on pallet depth and the overhang you want on each side. A 48-inch deep pallet often uses a 42-inch deep upright, allowing about 3 inches of overhang front and back. If your loads are oversized, adjust depth and beam layout to keep pallets stable and within the rack footprint.
What are typical uses and common row configurations for these frames?
Use this upright frame in selective pallet rack rows for warehouses, manufacturing, and distribution centers. It supports palletized goods like cartons, parts bins, and bulk materials stored on standard pallets. A starter unit begins a row using two uprights, while add-on units extend the row using one upright. When replacing damaged components, ordering the MECO Structural Pallet Rack Upright Frame can restore a bay without changing the full system. It is also used for layout changes, where frame height or depth must match new inventory profiles.
Is the manufacturer’s warranty included with my purchase?
Yes. All products sold on CustomMHS.com include the original manufacturer’s warranty unless otherwise noted. Custom MHS is an authorized dealer for the brands we carry, which means your purchase is covered by the manufacturer's full factory warranty.
Do you offer bulk pricing or discounts on large orders?
Yes. Many products include automatic quantity price breaks. If you’re outfitting a facility or placing a larger order, email us for project pricing. We can often provide improved volume pricing and help coordinate logistics for staged deliveries or multi-location shipments. Contact: [email protected]
Why purchase from CustomMHS.com?
CustomMHS.com supports manufacturing and distribution operations that need equipment that fits right the first time. We specialize in storage and material handling and help you select the correct configuration upfront to avoid errors that cause delays, reorders, and costly downtime. To make price comparisons simple and fair, we reference the manufacturer’s model number on our listings and quotes whenever available. That way, you can compare the exact same item across suppliers apples to apples, so you can verify you’re getting the best deal without guessing whether the specs match.
