Husky 42 Inch Deep Pallet Racking, Starter and Add-On Sections, 96 to 240 Inches Tall

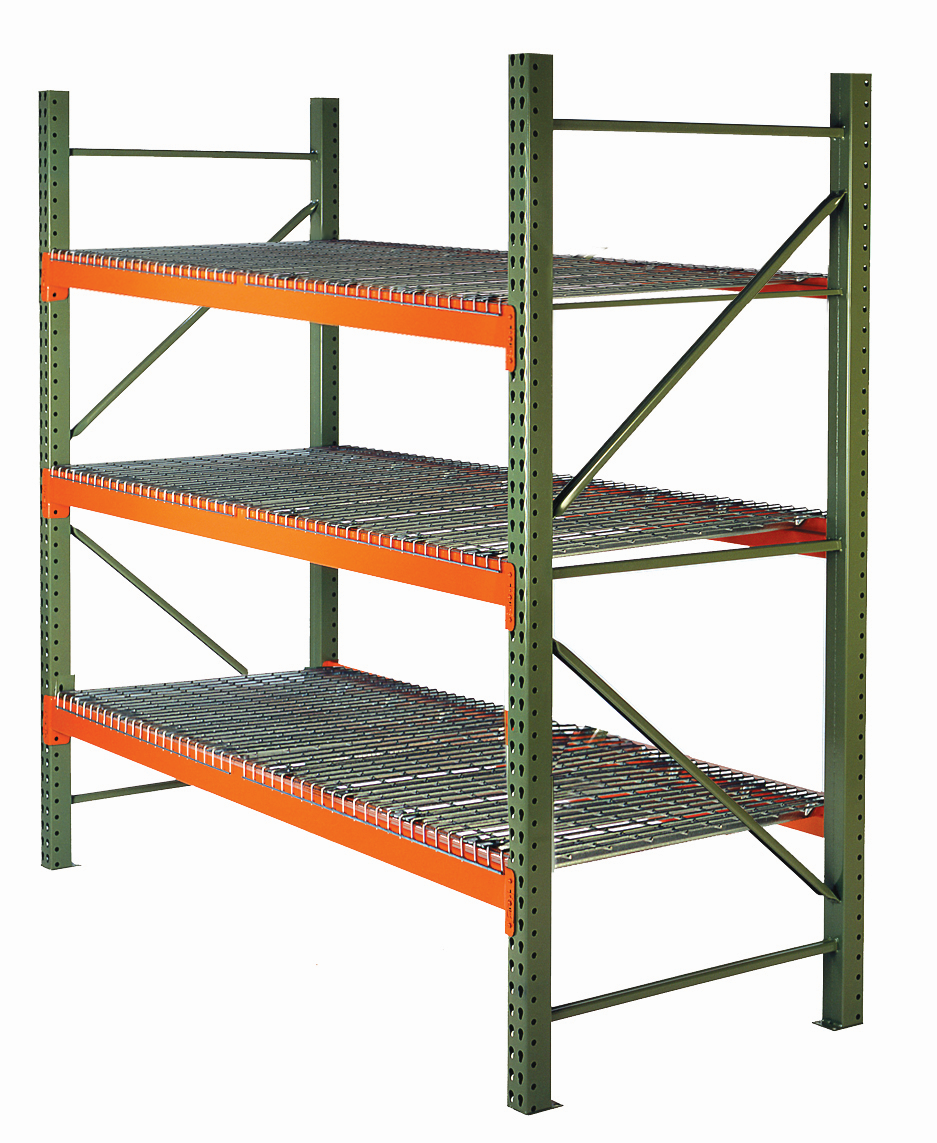

Husky 42 inch deep pallet racking is a roll-formed teardrop pallet rack system built from 42 inch deep upright frames in heights of 96, 120, 144, 192 and 240 inches, sold as starter sections with two frames and add-on sections with one frame. A 42 inch frame is the standard choice for a 48 inch by 40 inch GMA pallet stored with its 48 inch side front to back: the pallet overhangs the front and rear beams by 3 inches on each side, which is how most rack is designed to be loaded, and the load bears on the beams rather than on decking. Every section on this page uses the same Husky step beams, rated per pair from 3,000 to 8,873 pounds depending on length and profile, locked to the frame with Bowlock clips on teardrop slots punched every 2 inches.
Get a Fast Quote →Read the Buying Guide →
| Pallet Rack Starter unit to begin each row or use it individually. Consists of 2 uprights and shelf levels (with or without wire decking) |
|

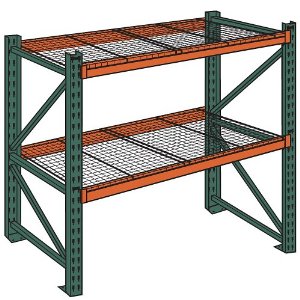

Husky 42"D x 96"H Starter Pallet Rack, Heavy Duty, 3" x 1-5/8" Upright, 14 Gauge, 8' Tall
|
Husky 42"D x 120"H Starter Pallet Rack, Heavy Duty, 3" x 1-5/8" Upright, 14 Gauge, 10' Tall
|
![]() Husky 42"D x 144"H Starter Pallet Rack, Heavy Duty, 3" x 1-5/8" Upright, 14 Gauge, 12' Tall Tallest standard Heavy Duty configuration before stepping up to Extra Heavy Duty.
|
![]() Husky 42"D x 144"H Starter Pallet Rack, Extra Heavy Duty, 3" x 3" Upright, 14 Gauge, 12' Tall Larger 3-inch upright adds capacity over the standard Heavy Duty frame at the same height.
|
||||
|
Husky 42"D x 144"H Starter Pallet Rack, Extreme Duty, 3" x 3" Upright, 13 Gauge, 12' Tall
|
![]() Husky 42"D x 192"H Starter Pallet Rack, Heavy Duty, 3" x 1-5/8" Upright, 14 Gauge, 16' Tall Tall, Heavy-Duty configuration for facilities maximizing vertical cube.
|
![]() Husky 42"D x 192"H Starter Pallet Rack, Extra Heavy Duty, 3" x 3" Upright, 14 Gauge, 16' Tall Larger upright adds capacity for the tallest standard warehouse installations.
|
![]() Husky 42"D x 192"H Starter Pallet Rack, Extreme Duty, 3" x 3" Upright, 13 Gauge, 16' Tall Maximum capacity at 16-foot height with the thickest gauge steel available.
|
||||
![]() Husky 42"D x 240"H Starter Pallet Rack, Extra Heavy Duty, 3" x 3" Upright, 14 Gauge, 20' Tall The tallest configuration on this page, built for high-bay warehouse storage.
|
|||||||
| Add-on units to attach to the starter unit (share a standard upright). Consists of 1 upright and shelf levels (with or without wire decking) |

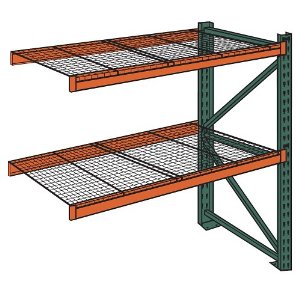

![]() Husky 42"D x 96"H Add-on Pallet Rack, Heavy Duty, 3" x 1-5/8" Upright, 14 Gauge, 8' Tall Extends a row by sharing a common upright with the adjacent unit.
|
![]() Husky 42"D x 120"H Add-on Pallet Rack, Heavy Duty, 3" x 1-5/8" Upright, 14 Gauge, 10' Tall Mid-height add-on for extending rows at the 10-foot Heavy Duty tier.
|
![]() Husky 42"D x 144"H Add-on Pallet Rack, Heavy Duty, 3" x 1-5/8" Upright, 14 Gauge, 12' Tall Extends 12-foot heavy-duty rows without duplicating a full upright.
|
Husky 42"D x 144"H Add-on Pallet Rack, Extra Heavy Duty, 3" x 3" Upright, 14 Gauge, 12' Tall
|
||||
|
Husky 42"D x 144"H Add-on Pallet Rack, Extreme Duty, 3" x 3" Upright, 13 Gauge, 12' Tall
|
![]() Husky 42"D x 192"H Add-on Pallet Rack, Heavy Duty, 3" x 1-5/8" Upright, 14 Gauge, 16' Tall Extends 16-foot heavy-duty rows for tall warehouse installations.
|
![]() Husky 42"D x 192"H Add-on Pallet Rack, Extra Heavy Duty, 3" x 3" Upright, 14 Gauge, 16' Tall Extends 16-foot Extra Heavy Duty rows at matching capacity.
|
![]() Husky 42"D x 192"H Add-on Pallet Rack, Extreme Duty, 3" x 3" Upright, 13 Gauge, 16' Tall Extends 16-foot Extreme Duty rows at the highest capacity tier.
|
||||
![]() Husky 42"D x 240"H Add-on Pallet Rack, Extra Heavy Duty, 3" x 3" Upright, 14 Gauge, 20' Tall Extends the tallest 20-foot rows for high-bay warehouse installations.
|
|||||||
Husky builds the 42 inch deep frame on three columns, and the frame code at the front of every model number tells you which one you are looking at. IU18 is the standard column, 3 inches by 1-5/8 inches in 14 gauge steel, rated 18,160 pounds at 48 inch beam spacing and offered in 96, 120, 144 and 192 inch heights. IU24 is the heavy duty column, 3 inches by 3 inches in 14 gauge, rated 25,390 pounds at the same spacing and offered in 144, 192 and 240 inch heights. SU29 is the heaviest, a 3 by 3 inch column in 13 gauge welded tubing on a 5 by 7 inch base plate, offered in 144 and 192 inch heights. The beams and their ratings are identical across all three; the column decides how much total weight a frame carries and how it stands up to forklift contact.
Two rules shape every installation. Height to depth is limited to 6 to 1 measured to the top loaded beam, and a 240 inch frame on a 42 inch base works out to about 5.7 to 1, so every height on this page stands without row spacers by the ratio alone, though many engineers call for spacers above 16 feet regardless. ANSI MH16.1 also requires a permanent load plaque of at least 50 square inches showing the maximum load per level and per bay, updated whenever the rack is reconfigured. Both rules are explained in the CustomMHS pallet racking guide.
Product Lines:
The tiles below are grouped as starters first, then add-ons, each in order of height and frame. Starters begin a row and ship with two frames; add-ons extend a row and ship with one frame, sharing the frame already standing at the end of the row, so a row of N bays is one starter plus N minus 1 add-ons, all on the same frame code. Heights of 96 and 120 inches carry two beam levels, 144 inches carries two or three, and 192 and 240 inches carry three or four. Every section is offered in 48, 96, 108, 120 and 144 inch bay widths with or without wire decking.
Selecting the Right Model:
◆ Pick the frame code before anything else. IU18 (3 by 1-5/8 inch, 14 gauge, 18,160 pounds at 48 inch spacing) covers most two and three level rows. Step to IU24 (3 by 3 inch, 14 gauge, 25,390 pounds) when the sum of the loaded levels on a frame runs past 18,160 pounds, and to SU29 (3 by 3 inch, 13 gauge) when forklift traffic at the rack face is heavy or an engineer or insurer specifies a 13 gauge column.
◆ Pick the height from load height times the number of levels plus about 6 inches of lift clearance per level. 96 and 120 inches carry two levels, 144 inches carries two or three, 192 and 240 inches carry three or four. Confirm forklift lift height and sprinkler clearance before buying above 144 inches.
◆ Start with the heaviest pallet you will store, double it for a two-pallet bay or triple it for a three-pallet bay, and pick a beam pair rated above that total from the 3,000 to 8,873 pound range. Then add up every loaded level on a frame and keep the total under the frame rating.
◆ Count bays, not frames. Buy one starter per row and one add-on for every additional bay, all on the same frame code, depth and height. A row of six 96 inch bays runs just under 50 feet with seven frames.
◆ Match depth to the pallet. A 42 inch frame suits the standard 48 by 40 inch GMA pallet loaded 48 inches deep. Pallets deeper than 48 inches, or loads that may not overhang the beams, belong on the 48 inch deep line.
◆ Add wire decking when cartons, drums or loose items will sit on the beams or when your fire code or insurer asks for open decking under sprinklers. Decking does not raise the beam rating, and it is rated for distributed loads, not point loads.
Which Husky frame do I need for 42 inch deep pallet rack, IU18, IU24 or SU29?
Choose by the total weight each frame will carry and by how hard the rack will be used. The Husky IU18 frame (3 by 1-5/8 inch column, 14 gauge) is rated 18,160 pounds at 48 inch beam spacing and handles most two and three level rows of standard pallets; the IU24 frame (3 by 3 inch, 14 gauge) is rated 25,390 pounds and is the choice when three or four levels of heavy beams would exceed the IU18 rating, which is why the 240 inch height is offered only on IU24; the SU29 frame (3 by 3 inch, 13 gauge welded tubing on a 5 by 7 inch base plate) is the heaviest column and is chosen for busy forklift aisles or when a 13 gauge column is specified. All three take the same Husky beams rated 3,000 to 8,873 pounds per pair, so the frame decides the bay total, not the per level capacity, and every add-on in a row must carry the same frame code as its starter. The CustomMHS pallet racking guide explains why every capacity has a condition attached (guide section 1), how frames, beams and bays make up a row (section 2), roll-formed versus structural columns (section 4), the 6 to 1 height to depth rule (section 6), anchoring and load plaques (section 7 and section 8), and wire decking ratings (section 10).
Where Commonly Used:
Husky 42 inch deep pallet racking is used in warehouses, distribution centers, manufacturing plants and third party logistics operations to store standard 48 by 40 inch pallets two to four levels high on forklift and reach truck aisles, from 8 foot rows under mezzanines to 20 foot rows in high bay buildings.
CustomMHS carries the full line of Husky Invincible pallet rack, backed by the manufacturer’s warranty.
