Pallet Rack Components: Uprights, Step Beams, Decking and Accessories

Pallet rack components are the individual parts that make up a teardrop pallet rack bay, sold separately so a shopper can build a section from scratch, replace a damaged part, add a level to an existing row, or fit the safety hardware that most fire codes and rack inspections call for. A complete bay needs two upright frames, two beams per level, and the clips that lock each beam to the frame; everything else on this page (decking, crossbars, flue spacers, post protectors, row spacers, wall ties, backing and doors) is added for safety, for the type of load, or to meet a code requirement. The components here fit Husky Invincible teardrop rack with slots punched on 2 inch centers.

Get a Fast Quote →Read our Racking Components Buying Guide →

wireway-husky pallet racking

Husky Pallet Rack Upright Frames

Available in 3" x 1-5/8" or 3" x 3" sizes to match beam capacity requirements.

Shop Husky Pallet Rack Upright Frames →
pallet rack beams

Husky Pallet Rack Step Beams

Teardrop-pattern beams accept standard decking and connection hardware.

Shop Husky Pallet Rack Step Beams →
wire decking


Husky Wire Decking for Step Beams


Wire decking improves inventory visibility while supporting stored loads.

Shop Husky Wire Decking →
Imagem

WWMH Wire Decking for Step Beams

Wire decking option compatible with Husky step beam racking systems.

Shop WWMH Wire Decking →
solid decking

Little Giant Pallet Rack Solid Decking for Step Beams

Solid surface decking suited for smaller items that could fall through wire.

Shop Little Giant Solid Steel Decking →
Imagem

Little Giant Pallet Rack Perforated Decking for Step Beams

Perforated surface balances load support with airflow and visibility.

Shop Little Giant Perforated Steel Decking →
cross bars

Husky Pallet Rack Step Beam Supports

Provides additional mid-span support for loaded step beams.

Shop Husky Pallet Rack Crossbars →

worldstop

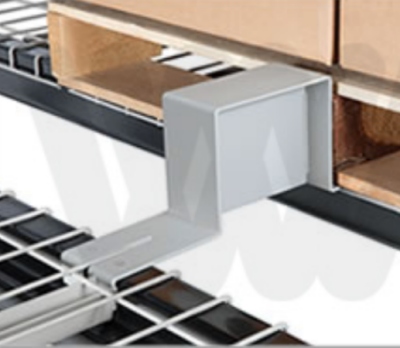

Worldwide Material Handling WorldStop Flue Spacer

Maintains required flue space between back-to-back racking for fire code compliance.

Shop WorldStop Flue Spacers →
post protectors

Pallet Rack Upright Frame Protectors

Guards protect upright frames from forklift impact and collision damage.

Shop Pallet Rack Post Protectors →
row spacer

Husky Pallet Rack Row Spacers

Maintains consistent spacing between back-to-back rack rows.

Shop Husky Row Spacers →
walll ties

Husky Pallet Rack Upright Wall Ties

Anchors racking to adjacent walls for added structural stability.

Shop Husky Wall Ties →
Mighty Line 5s  Industrial Floor Tape

Mighty Line 5S Industrial Floor Tape

Marks aisles, zones, and rack locations with durable, high-visibility striping.

Shop Mighty Line Floor Tape →
wirecrafters fencing

WireCrafters Heavy Duty Pallet Rack Doors

Secures rack openings to prevent unauthorized access to stored inventory.

Shop WireCrafters Rack Enclosures and Doors →
rack backing


WireCrafters Pallet Rack Heavy Duty Wire Backing


Bolts to the back of uprights to prevent items from falling through the rack.

Shop WireCrafters Heavy Duty Wire Backing →
wire backing

Pallet Rack Medium Duty Wire Backing

Lighter-duty backing option for applications with less demanding load protection needs.

Shop Husky Fluted Mesh Rack Backing →


The structural parts carry the ratings. Husky upright frames come in two columns: the IU18 at 3 inches by 1-5/8 inches in 14 gauge steel, rated 18,160 pounds at 48 inch beam spacing, and the IU24 at 3 inches by 3 inches in 14 gauge, rated 25,390 pounds at the same spacing. Husky step beams are rated per pair, from 3,000 pounds for a 4-3/8 inch tall beam at 144 inches to 8,873 pounds for a 5-1/2 inch beam at 108 inches, and the step along the top edge is what wire decking and crossbars rest in. The frame rating limits the total weight in a bay; the beam rating limits each level; and both assume the load is evenly distributed.

The rest of the page is protection and compliance. Wire decking (Husky and WWMH) lets sprinkler water pass and supports cartons, drums and odd-sized loads that would fall through open beams; Little Giant solid and perforated decking does the same for small parts, with perforated decking keeping some airflow for sprinklers. Crossbars give a pallet a bearing surface across the beam without a full deck. Row spacers and WorldStop flue spacers hold the gap between back to back rows that the fire code requires for sprinkler coverage. Post protectors take the forklift hit that would otherwise bend a column. Wall ties brace a single row to the building. Wire backing and WireCrafters rack doors keep product from being pushed off the back of a rack onto a walkway or into a locked enclosure.


Product Lines:
The tiles below run from the structure outward: frames and beams first, then decking, then the hardware that protects the rack and the people around it. Husky supplies the frames, step beams, wire decking, crossbars, row spacers, wall ties and fluted mesh backing; WWMH supplies an alternate wire deck for Husky step beams; Little Giant supplies solid and perforated steel decking; Worldwide Material Handling supplies the WorldStop flue spacer; Mighty Line supplies floor tape for aisle and rack location marking; WireCrafters supplies heavy duty wire backing, rack doors and enclosures.



Selecting the Right Model:
◆ Build the bay from the load. Pick the beam pair rated above your heaviest level, then pick the frame (IU18 or IU24) whose rating covers the sum of all levels at your beam spacing, then the frame depth that matches the pallet (42 inch for standard 48 by 40 GMA pallets, 48 inch for deeper loads).
◆ Replace like with like. A replacement frame or beam must carry the same frame code, depth and height as the rest of the row, or the row is only as strong as its weakest part and the load plaque no longer applies.
◆ Add decking by what goes on the beams. Pallets alone need no deck; cartons, drums and mixed loads need wire decking; small parts need solid or perforated decking. Solid decking blocks sprinkler water and most codes limit how much solid shelving a sprinklered rack can carry, so confirm with your fire marshal before choosing it.
◆ Keep the flue. Back to back rows need a transverse flue, typically 6 inches, held by row spacers or flue spacers so sprinkler water can reach the lower levels. Spacers are required by most manufacturers when frame height exceeds six times depth and are good practice above 16 feet regardless.
◆ Protect the column. Most rack failures start with a bent column at floor level from a forklift strike. Post protectors on aisle ends and at every tunnel bay cost far less to replace than a frame, and wall ties stop a single row from racking sideways.
◆ Back any rack that faces people. Wire backing on the rear of a rack that borders a walkway, dock door or workstation stops a pushed pallet or a loose carton from falling onto someone.


What parts do I need to build one bay of pallet rack?

One bay needs two upright frames, two beams per level (so four beams for two levels, six for three), and the beam clips, which on Husky Invincible rack are the Bowlock clips that ship with the beams; everything else is optional or code driven. Add wire decking (two decks per level on a 96 or 108 inch bay) if anything other than a full pallet will sit on the beams, anchors for every frame footplate, a load plaque for the bay, and row spacers if the bay backs onto another row. A second bay in the same row needs only one more frame plus its beams, because it shares the first bay’s end frame. Husky frames are rated 18,160 pounds (IU18) or 25,390 pounds (IU24) at 48 inch beam spacing and the beams 3,000 to 8,873 pounds per pair. The CustomMHS pallet racking guide explains why every capacity has a condition attached (guide section 1), how frames, beams and bays fit together (section 2), the 6 to 1 rule and row spacers (section 6), anchoring and load plaques (section 7 and section 8), wire decking and point loads (section 10), and how to spot column damage that calls for a replacement frame or a post protector (section 11).


Where Commonly Used:
Pallet rack components are used in warehouses, distribution centers and manufacturing plants to build new Husky teardrop rack bays, replace damaged frames and beams, add levels and decking to existing rows, and fit the flue spacers, post protectors, wall ties and backing that fire codes and rack inspections require.

CustomMHS carries the full line of Husky, WWMH, Little Giant, Worldwide Material Handling, Mighty Line and WireCrafters pallet rack components, backed by each manufacturer’s warranty.

Frequently Asked Questions (FAQs)

What components make up a pallet rack section?

A rack section is built from upright frames, step beams, and decking. Uprights are the vertical columns, beams span between them to carry the load, and decking sits on the beams to support what is stored. Everything else on this page is either a safety addition or a structural accessory. CustomMHS carries the full line of Husky, WireCrafters, and Worldwide Material Handling pallet rack components, backed by each manufacturer's warranty.

Which upright frame size should I choose?

Two sizes are available: 3" x 1-5/8" and 3" x 3". The larger frame supports higher beam capacities and heavier loads, so the choice follows the weight you plan to store rather than the height of the rack. Both use the teardrop pattern, which is an industry standard and accepts most teardrop-style beams, so components are not limited to a single manufacturer.

Should I choose wire, solid, or perforated decking?

Wire decking allows air and light through, which improves inventory visibility and brightens aisles, and it accommodates cartons, drums, and multiple pallet sizes on the same beam level. Solid decking supports smaller items that would fall through wire openings. Perforated decking sits between them, balancing load support with airflow and visibility. Wire is the most flexible default, with solid reserved for small-item storage.

What is a flue spacer, and why does it matter?

The flue space is the gap between back-to-back rack rows, and fire codes require it to stay open so sprinkler water can reach lower levels. A flue spacer such as the Worldwide WorldStop, maintains that gap so pallets do not get pushed into it during loading. This is a compliance item rather than a convenience, and it is easy to overlook when planning a back-to-back installation.

How do rack components help your facility?

Buying components rather than complete systems lets you expand an existing rack run instead of replacing it, so added capacity costs only what the new bays require. Safety additions then protect that investment: upright frame protectors absorb forklift impact that would otherwise weaken columns, wall ties anchor racking for structural stability, and wire backing panels keep items from being pushed off the back of a rack into the next aisle. WireCrafters rack doors add access control for high-value inventory stored in the rack itself, and floor tape marks aisles and rack locations so traffic patterns stay defined.
