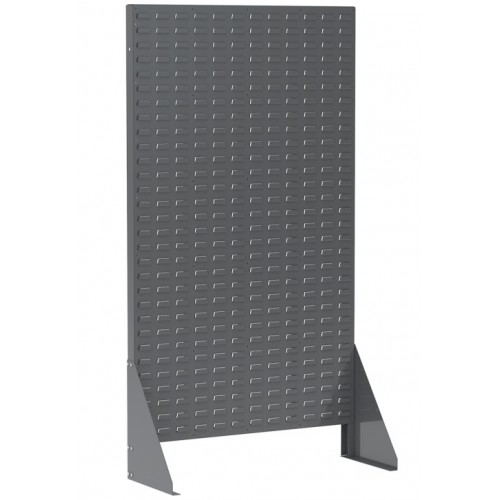

Akro-Mils 30661 Single-Sided Louvered Floor Rack | 36 x 66 in., 500 lb Capacity
-
- Manufacturer: Akro-Mils Bins and Containers
-
$378.00 each
MFG's Part Number: 30661Price-match guarantee
Usually ships within 2–3 business days
Request a quote for this model
Quick Specs
◆ Ordering a quantity of 1 provides 1 rack.
◆ Size: 36-3/16" long x 13-1/2" wide x 66-3/8" tall.
◆ Rack Capacity: 500 pounds
◆ Material: 16-gauge cold-rolled steel
◆ Finish: Gray powder coat
◆ Construction: Full louvered panel riveted to a heavy-duty freestanding frame
◆ Bins Held: 120 of the 30210 or 30220, 80 of the 30224, 60 of the 30230 or 30234, 28 of the 30239 or 30240, 10 of the 30270 or 30320
◆ Bins are not included.
Why Use This Product
The 30661 is the floor-standing version of the 30161 wall panel. It holds the same 120 small 30210 bins, or 60 of the 30230, on a full louvered panel riveted to its own steel frame, so it needs no wall to mount on. That frees bin storage from fixed walls. The rack can stand beside a work cell, at the end of an assembly line, or against a wall where mounting a panel is not practical. Because the panel arrives riveted to the frame, setup is faster than building a rack from separate parts. The tradeoff is load: the 30661 is rated at 500 pounds against 1,000 for the wall-mounted 30161. When you need twice the bins in the same floor length, the double-sided 30676 holds 240 of the 30210 with a 1,000 pound rating.
Key Features Explained
◆ Freestanding Rivet Frame: The louvered panel is riveted to a heavy-duty frame for strength and ease of assembly, with no wall mounting required.
◆ Full-Width Louvers: AkroBin hangers drop into any louver, so bins move or change size with no tools as the part mix changes.
◆ 16-Gauge Cold-Rolled Steel: Heavy-gauge steel with a powder-coated finish for long service on the shop floor.
◆ 500 Pound Rating: The rating covers everything hanging on the rack. Add up the weight of the loaded bins, because Akro-Mils notes that a rack’s capacity can be less than the combined capacity of the bins on it.
◆ Optional Mobility: The 30661DOLLYGY dolly (37 x 24 x 6 in., 500 lb capacity) has floor locks and lets you move the rack without unloading the bins.
Best-Fit Use Cases
◆ Assembly Lines: Components staged at the point of use, beside the line, with no wall nearby.
◆ Work Cells: A dedicated parts rack that moves with the cell when the layout changes.
◆ Maintenance Shops: Spares and consumables kept in one visible location on open floor space.
◆ Leased or Finished Spaces: High-count bin storage where drilling into the walls is not an option.
Ready to Order
The Akro-Mils 30661 is sold individually and usually ships within 2 to 3 business days. Add it to your cart to order now.
CustomMHS carries Akro-Mils louvered panels and racks. All purchases include the manufacturer’s factory warranty.
