Akro-Mils 30676 Double-Sided Louvered Floor Rack | 36 x 66 in., 1,000 lb Capacity
-
- Manufacturer: Akro-Mils Bins and Containers
-
$649.00 each
MFG's Part Number: 30676Price-match guarantee
Usually ships within 2–3 business days
Request a quote for this model
Quick Specs
◆ Ordering a quantity of 1 provides 1 rack.
◆ Size: 36-3/16" long x 25" wide x 66-3/8" tall.
◆ Rack Capacity: 1,000 pounds
◆ Material: 16-gauge cold-rolled steel
◆ Finish: Gray powder coat
◆ Construction: Two full louvered panels riveted back to back on a heavy-duty freestanding frame
◆ Bins Held: 240 of the 30210 or 30220, 160 of the 30224, 120 of the 30230 or 30234, 56 of the 30239 or 30240, 20 of the 30270 or 30320
◆ Bins are not included.
Why Use This Product
The 30676 is the double-sided version of the 30661. It has the same 36-3/16 inch length and 66-3/8 inch height, with a second louvered face on the back, so it holds twice the bins in the same floor length: 240 of the small 30210, or 120 of the 30230. The frame grows from 13-1/2 to 25 inches deep to carry both faces, and the rating doubles from 500 to 1,000 pounds. Because both sides are usable, the 30676 works best as an island, with one side facing the line or bench and the other facing an aisle or a second work area. Two people can pick from it at once without crowding each other.
Key Features Explained
◆ Double-Sided Rivet Frame: Two louvered panels are riveted to one heavy-duty frame for strength and ease of assembly, with no wall mounting required.

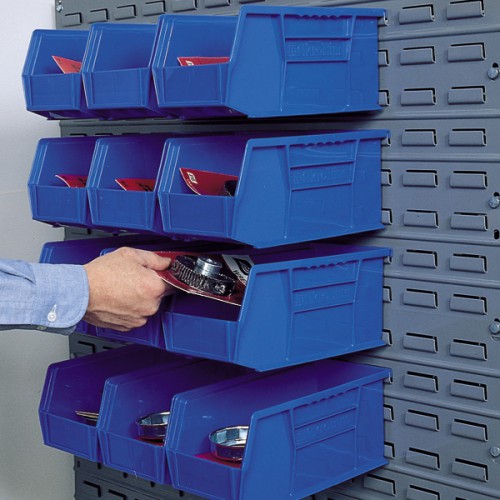

◆ Full-Width Louvers: AkroBin hangers drop into any louver on either face, so bins move or change size with no tools as the part mix changes.
◆ 16-Gauge Cold-Rolled Steel: Heavy-gauge steel with a powder-coated finish for long service on the shop floor.
◆ 1,000 Pound Rating: The rating covers everything hanging on both sides. Add up the weight of the loaded bins, because Akro-Mils notes that a rack’s capacity can be less than the combined capacity of the bins on it.

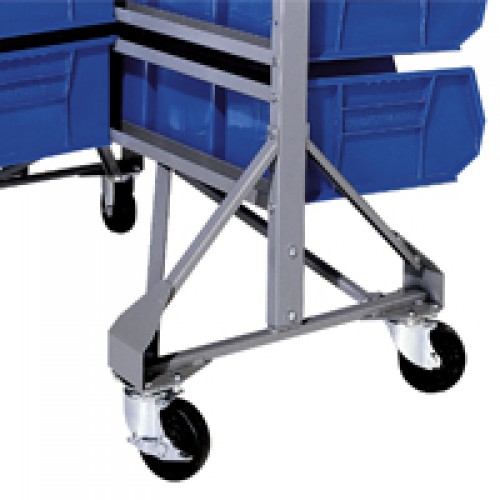

◆ Optional Mobile Kit: The LVDMOBILE kit (36 x 25 x 4 in., 1,500 lb capacity) lets you move the rack without unloading the bins.
Best-Fit Use Cases
◆ Assembly Lines: A center island feeding parts to stations on both sides of the rack.
◆ Kitting Areas: Two pickers working opposite faces of the same rack at the same time.
◆ Maintenance Shops: High-count spares storage in open floor space with access from either side.
◆ Distribution and Pick Areas: Small parts picking from an aisle-facing rack, with no wall needed.
Ready to Order
The Akro-Mils 30676 is sold individually and usually ships within 2 to 3 business days. Add it to your cart to order now.
CustomMHS carries Akro-Mils louvered panels and racks. All purchases include the manufacturer’s factory warranty.
