Akro-Mils Akro-Grid Dividable Plastic Boxes

Akro-Grid boxes have molded internal slots that accept dividers, so one container can be split into compartments for several part numbers instead of dedicating a bin to each. A single box can hold a full assembly kit, a family of fasteners, or a group of low-volume SKUs in clearly separated sections. Dividers pull out and move, so the layout can change with the inventory instead of forcing a new container.

Molded divider slotsStrong stacking rimsReinforced external ribbingSubdivsion to 1-1/8" square

Get a Fast Quote →Read our Buying Guide →

Prices are shown by manufacturer model number.
Compare the exact same item across competitors - no extra searching.

Model Number	Outside Top (LxWxH)	Inside Bottom (LxWxH)	Carton Qty	Carton Price	View Model
33105	10-7/8" x 8-1/4" x 5"	9-1/8" x 6-1/2" x 4-5/8"	20 Containers Per Carton	$133.00	View Model
33164	16-1/2" x 10-7/8" x 4"	14-13/16" x 9-3/16" x 3-7/8"	12 Containers Per Carton	$117.60	View Model
33166	16-1/2" x 10-7/8" x 6"	14-3/4" x 9-1/8" x 5-9/16"	8 Containers Per Carton	$84.25	View Model
33168	16-1/2" x 10-7/8" x 8"	14-5/8" x 9-1/16" x 7-9/16"	6 Containers Per Carton	$78.00	View Model
33224	22-3/8" x 17-3/8" x 4"	20" x 15" x 3-7/8"	6 Containers Per Carton	$116.00	View Model
33226	22-3/8" x 17-3/8" x 6"	19-7/8" x 14-7/8" x 5-7/8"	4 Containers Per Carton	$82.00	View Model
33228	22-3/8" x 17-3/8" x 8"	19-7/8" x 14-7/8" x 7-7/16"	3 Containers Per Carton	$67.00	View Model

Divider boxes are shallow containers with slots molded into the walls, so the spec that matters is slot count and divider spacing, along with the footprint and depth. Divider boxes are typically stack only, because the box has to stay rigid for the dividers to stay put, so plan your storage around stacking rather than nesting. Dividers are model-specific, so confirm the divider for your box before you order.

Size by the inside bottom dimensions, not the outside. Sizing off the outside dimension is the classic way to receive a carton of containers that your parts will not sit flat in. The eight Akro-Grid models cover three footprints in depths from 3" to 8" and are sold by the carton, so compare carton price against the cost per container for the depth you need.

Selecting the Right Box
◆ Choose the small footprint of 10-7/8" x 8-1/4" for shallow parts and shelving where vertical space is tight
◆ Choose the mid footprint of 16-1/2" x 10-7/8" in 4", 6", or 8" depths, with 4" for flat hardware and gaskets, 6" for general fasteners, and 8" for longer bolts and taller parts
◆ Choose the large footprint of 22-3/8" x 17-3/8" in 3", 4", 6", or 8" depths, with the shallow pair for spreading many small SKUs and the deeper pair for volume per compartment in kitting
◆ Choose by inside bottom dimensions for the part, and by outside top dimensions for the shelf
◆ Compare carton price against the cost per container, since shallower models ship more units per carton
◆ Match dividers to the box model before you order

To compare divider boxes with other container types, read our containers, totes, and trays buying guide.

Where Commonly Used

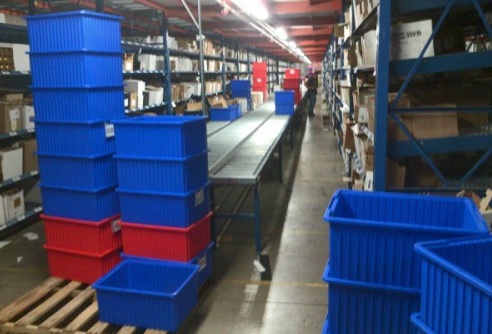

Akro-Grid boxes are commonly used in assembly and kitting, maintenance and MRO parts storage, stockrooms for low-volume SKUs, and high-density order picking.

CustomMHS is an authorized Akro-Mils distributor. All purchases include the manufacturer’s factory warranty.

Frequently Asked Questions (FAQs)

What are Akro-Grid divider bins used for?

Akro-Grid divider bins are designed for organizing small parts, hardware, components, and inventory in warehouses, workshops, maintenance areas, and assembly operations.

What makes these bins “dividable”?

These bins feature internal channels that allow you to add dividers, creating multiple compartments inside one bin for better organization and fast part access.

Are these bins stackable or shelf compatible?

Yes. Akro-Grid bins are designed to work with industrial shelving, storage systems, and stackable setups for efficient space use.

What sizes are available in Akro-Grid divider bins?

Akro-Grid bins are available in multiple lengths, widths, and depths to fit different storage needs, from small hardware organization to larger component storage.

Do you offer quantity discounts for large bin orders?

Yes. Many Akro-Grid bin products include quantity price breaks. If you're outfitting a full stockroom or facility, our team can assist with bulk pricing.

Is the manufacturer’s warranty included with my purchase?

Yes. All products sold on CustomMHS.com include the original manufacturer’s warranty unless otherwise noted. Custom MHS is an authorized dealer for the brands we carry, which means your purchase is covered by the manufacturer's full factory warranty.
