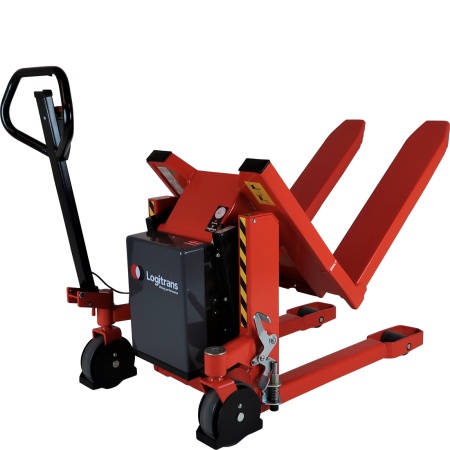

Logitrans Logitilt Battery Powered Tilter

The Logitrans Logitilt is a battery-powered tilter designed for fixed workstation use in production, assembly, picking, and inspection environments where operators must repeatedly access box and crate contents. The Logitilt tilts the container to 90 degrees, bringing the opening to the operator at a comfortable working angle and eliminating the bending, reaching, and awkward postures that cause fatigue and musculoskeletal strain in high-repetition container-access tasks.

Battery-powered operation provides smooth, controlled tilting without manual effort. The Logitilt suits both standing and seated workstations, making it adaptable to ergonomic workstation configurations that accommodate different operator heights and preferences.

Two models are available, differentiated by fork span (the outside dimension of the tilting arms). Fork length is configurable at 31.5" or 45", specify at the time of order. Capacity is 2,200 lb on both models.

Models and Specifications:

♦ LT-1001-TE-22, 22" fork span (OD). Fork length 31.5" or 45" (specify at order). Capacity 2,200 lb. Battery-powered tilt to 90°. Suited for standing and seated workstations.
♦ LT-1001-TE-27, 27" fork span (OD). Fork length 31.5" or 45" (specify at order). Capacity 2,200 lb. Battery-powered tilt to 90°. Wider span for larger containers. Same specification as LT-1001-TE-22 at a greater fork span.

Selecting the Right Model:

♦ Fork span, 22" or 27" OD: the fork span is the outside dimension of the two tilting arms that hold the container. Select based on the outside width of the boxes or crates in the operation; the arms must clear the container's outside on both sides.
♦ Fork length, 31.5" or 45", determines how deeply the tilting arms support the container from front to back. Deeper containers require the 45" fork length for adequate support during tilting.
♦ Logitilt vs. rotator family: the Logitilt tilts to 90 degrees from a fixed workstation position. The Logitrans rotator family tilts beyond 90 degrees and is mounted on a transportable walkie stacker base. Choose the Logitilt for a lower-cost, fixed-workstation ergonomic tilting solution. Choose a rotator model when mobile transport, lift height, or beyond-90-degree tilting is required.

Where Commonly Used:

Assembly line operators use the Logitilt to bring container openings to a comfortable working angle when accessing deep boxes and crates; picking and inspection workstations use it for consistent ergonomic positioning during repetitive access tasks; production floor part supply stations use it to present containers at the correct angle for line operators; and seated workstation ergonomic programs use it to configure container angle for seated access without manual repositioning.

CustomMHS is an authorized Logitrans distributor. All purchases include the manufacturer's factory warranty.
